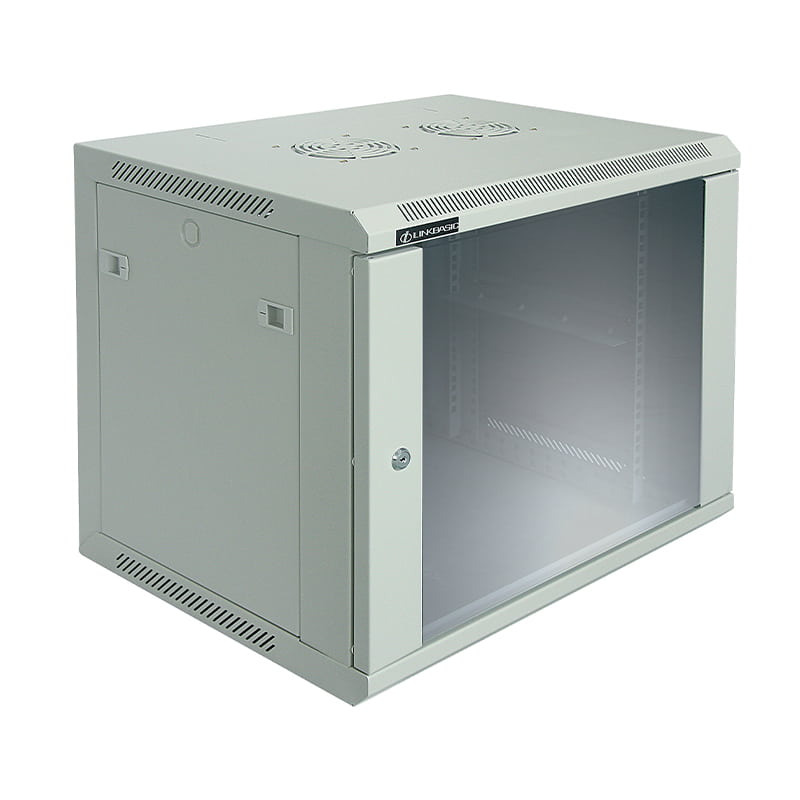

WCB CABINET WCB

WCB CABINET WCB

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
  • APPLICATION
● Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server computer and precision electronic equipment.
  • TECHNICAL SPECIFICATION
● Exquisite design with precise craftsmanship.
● international popular smoky-gray glass front door.
● Loading capacity: 60KG.
● Top and bottom wiring channel could be closed.
● Removable front door and side panel, easily installing and maintaining.
● Surface finish: Degreased, acid cleaned, phosphoric, water cleaned,electro-static powder coating, meet ROHS standard.
● Optional color: black/gray.
● Optional accessories.
  • Main material
● Cool rolled steel
● Thickness: Vertical rail:1.5mm
● Else in 1.2mm
● Tempered smoky-gray glass with thickness of 5mm.
  • ORDER INFORMATION

Part No

Capacity/U

Width/mm

Depth/mm

Height/mm

CM/Width/m

CM/Depth/m

CM/Height/m

Volume/CBM

WCB06-645-*☆

6U

600

450

368

0.67

0.52

0.43

0.15

WCB09-645-*☆

9U

600

450

501

0.67

0.52

0.56

0.20

WCB12-645-*☆

12U

600

450

635

0.67

0.52

0.70

0.24

WCB15-645-*☆

15U

600

450

769

0.67

0.52

0.83

0.29

WCB18-645-*☆

18U

600

450

901

0.67

0.52

0.96

0.33

WCB22-645-*☆

22U

600

450

1082

0.67

0.52

1.14

0.40

WCB06-66-*☆

6U

600

600

368

0.67

0.67

0.43

0.19

WCB09-66-*☆

9U

600

600

501

0.67

0.67

0.56

0.25

WCB12-66-*☆

12U

600

600

635

0.67

0.67

0.70

0.31

WCB15-66-*☆

15U

600

600

769

0.67

0.67

0.83

0.37

WCB18-66-*☆

18U

600

600

901

0.67

0.67

0.96

0.43

WCB22-66-*☆

22U

600

600

1082

0.67

0.67

1.14

0.51

* = Front door(A=Steel Casement Door B=B=Smoky-grey glass door C=Smoky-gray glass door with frame punched

D =Perforation steel door with high ventilation level(hexagonal type))

☆=Colors A=Black(RAL9004) B=Gray(RAL7044)
