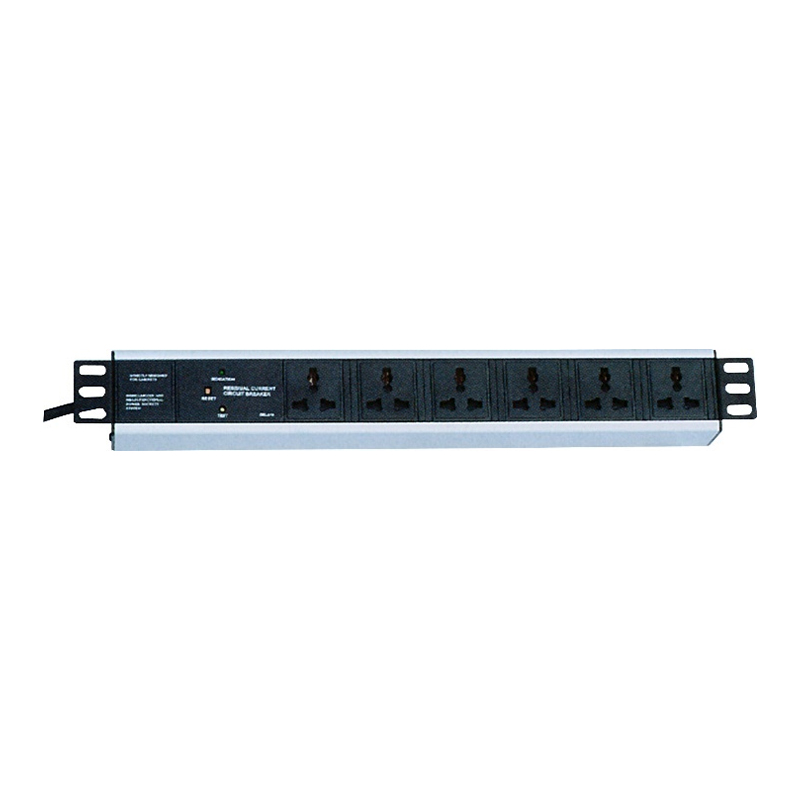

Power Distribution Unit CFU

Power Distribution Unit CFU

PDU series are modularized and multi-functional power distribution units exclusively for cabinet. The series products are designed & developed according to international standard and obtained several invent patent, and are made up of many standards of power socket modules, controlled function module, protecting function module, surge protector module, channel surge protector module, digital amperemeter module, creepage protector module, etc. The products are applied to 482.6mm  (19")  standard cabinet & nonstandard cabinet, and electronic & electric equipment of high-tech fields. Modularized and multi-functional power distribution unit is with Promethean & novel structure, international advanced technology, safe & reliable quality, easy installation and wide usage

  • TECHNICAL SPECIFICATION
● Modularized structure.
● Design and manufacturing of the product is arranged in a modularized way.
● Diversified socket system.
● The product is equipped with supply socket modules meeting different systems and standards in the world, which puts the product in a rather advantageous position to satisfy clients in each country or region.
● Diversified input characteristics.
● The product can be tailored to satisfy specific requirements on the cabinet in terms of its power input. The product is designed with diversified power input methods and equipped with plug cables specified in different systems or standards.
● Reliable output characteristics
● Sleeves or parts subordinate to a socket are made with phosphor bronze,  the material famous for its elasticity,  wear resistance, diamagnetism and corrosion resistance. The product is a result of precision work and integral impact and forming, which ensures a reliable contact and a single-pole pull-and-plug life at 5000 times above, a safe and reliable operation, no loosening, no strike, and reliable electric conductivity and connectivity.
● Internationally prevailing system and standard
● The product, a result of design and manufacturing process meeting applicable standards in the world,  finds particular applications in standard cabinets  482.6mm  [19"]  in terms of  its installation, application and other technical matters.
● Optional specification
● The series products can be produced according to customers special requirement,  the longest dimension can reach to  4600rrm,  and largest load can reach to double 32A.
● Optional control switch
● The product is equipped with a power switch working in an integral control, independent control or designated control way, a power light module is optional to meet specific operation requirements.
● Tailored holes pace
● The product can be tailored in terms of hole space to meet specific service conditions and technical specifications. A tailor-made panel or filling module in diversified specifications and dimensions can be used to partition the product in any space you prefer.
● Prompt overload protection response
● The overload protector can be chosen from automatic switch protection, air circuit breaker and fuse celerity protection, which are safe & reliable, and easily replaced.
● There are multiple overload protecting styles, for example, whole system, single socket or appointed socket.
● Sophisticated surging protection
● The product is equipped with a standard power surging protector, replaceable surge protection module and channel surging protector meeting internationally prevaing standards  Such modules can be combined to form a  power surging system to meet different requirements in lightning protection.
● Use a terminal for internal connection
● Thread ends are used for an internal connection of socket modules, plug connectors for functional modules.
● Quality thermal endurance and fire resistance
● All functional modules are adopted  PCIABS  plastic materials, hot change temperature reach to above  120'C,  fire-retardant characteristic accords with UL94-V0 standard.

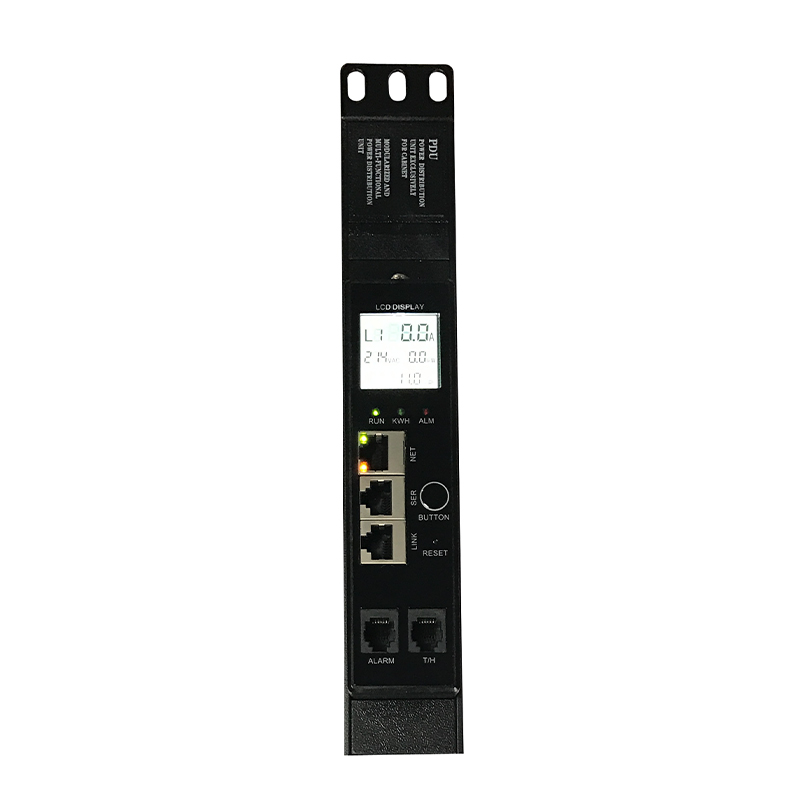

● Current display digitization
● The system design has digital ACamperemetermodule which can be installed horizontally or vertically, and digital AC amperemeter module
● with overload automatic protecting, which can ocularly display the change of load current. Users can select according to requirements.
  • ORDER INFORMATION

size

Description

Standard Color

Poly bag

CFU06-A1-H1U-2.0

6 way ALL  PDU unit ,Vertical1U,2MCable

Black

1PCS

CFU06-B-H1U-2.0

6 way US PDU unit ,Vertical1U,2MCable

Black

1PCS

CFU06-C-H1U-2.0

6 way UK PDU unit ,Vertical1U,2MCable

Black

1PCS

CFU06-D-H1U-2.0

6 way DE PDU unit ,Vertical1U,2MCable

Black

1PCS

CFU06F-H1U-2.0

6 way FR PDU unit ,Vertical1U,2MCable

Black

1PCS

CFU06-H1-H1U-2.0

6 way IEC C13 PDU unit ,Vertical1U,2MCable

Black

1PCS

CFU06-A1-H1.5U-2.0

6 way ALL  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-B-H1.5U-2.0

6 way US PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-C-H1.5U-2.0

6 way UK PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-D-H1.5U-2.0

6 way DE PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-E-H1.5U-2.0

6 way AU PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-E-H1.5U-2.0

6 way AU PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-F-H1.5U-2.0

6 way FR PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-H1-H1.5U-2.0

6 way IEC C13  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-H2-H1.5U-2.0

6 way IEC C14  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-H3-H1.5U-2.0

6 way IEC C19  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-H4-H1.5U-2.0

6 way IEC C20  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-G1-H1.5U-2.0

6 way ZA Black PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-G2-H1.5U-2.0

6 way ZA Red PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU06-I-H1.5U-2.0

6 way IT PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-A1-V1.5U-2.0

10 way ALL  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-B-V1.5U-2.0

10 way US PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-C-V1.5U-2.0

10 way UK PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-D-V1.5U-2.0

10 way DE PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-E-V1.5U-2.0

10 way AU PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-F-V1.5U-2.0

10 way FR PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-H1-V1.5U-2.0

10 way IEC C13  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-H2-V1.5U-2.0

10 way IEC C14  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-H3-V1.5U-2.0

10 way IEC C19  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-H4-V1.5U-2.0

10 way IEC C20  PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-G1-V1.5U-2.0

10 way ZA Black PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-G2-V1.5U-2.0

10 way ZA Red PDU unit ,Vertical1.5U,2MCable

Black

1PCS

CFU10-I-V1.5U-2.0

10 way IT PDU unit ,Vertical1.5U,2MCable

Black

1PCS
