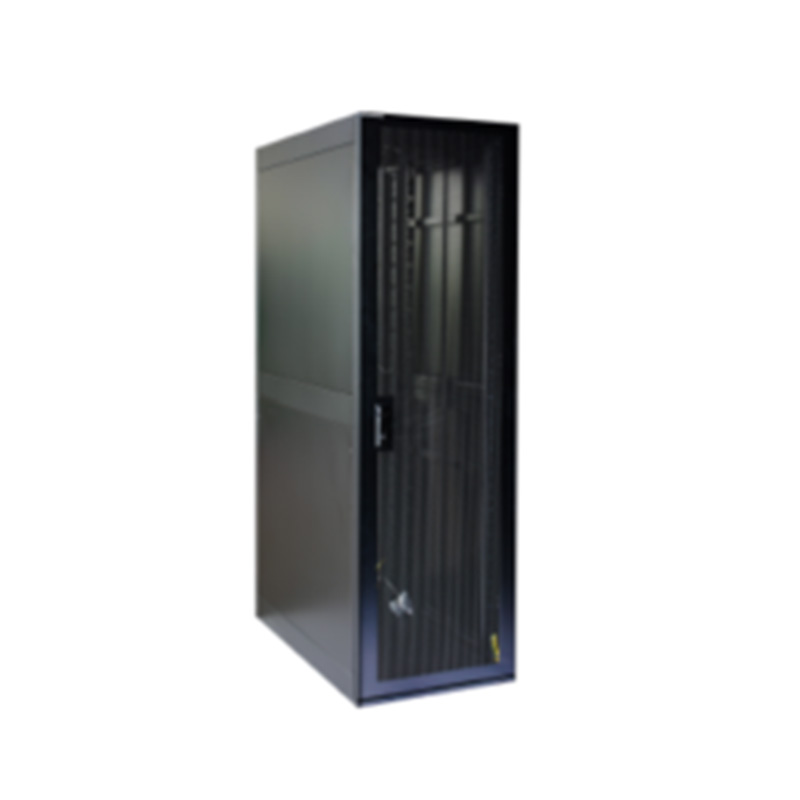

NCK cabinet

Product Name

Part No.

Description

IDC serve cabinet

NCK42-610-DFA

600*1000*2000, 42U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate), 4 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and rear door panels is 1.2mm

IDC serve cabinet

NCK42-611-DFA

600*1100*2000, 42U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK42-612-DFA

600*1200*2000, 42U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK47-610-DFA

600*1000*2200, 47U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),4 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK47-611-DFA

600*1100*2200, 47U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK47-612-DFA

600*1200*2200, 47U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK42-810-DFA

800*1000*2000, 42U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),4 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK42-811-DFA

800*1100*2000, 42U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK42-812-DFA

800*1200*2000, 42U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK47-810-DFA

800*1000*2200, 47U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),4 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK47-811-DFA

800*1100*2200, 47U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

IDC serve cabinet

NCK47-812-DFA

800*1200*2200, 47U 19'' standard cabinet, single front door, double swing back door, equipped with top and bottom plate(enclosed wiring hole on top plate),6 pcs Angle gauge, both sides and top of the Angle gauge equipped with baffle plate, 2 vertical wiring plate, front and back door equipped with ground cable, including and constant parts, screws and nuts; The thickness of the frame and angle gauge plate is 2mm, and the thickness of the front and  rear door panels is1.2mm

NCK42-100 side door

NCK42-100-CM

for 42U cabinet with1000 depth(built-in type), 2 side plate for one side

NCK42-100 side door

NCK42-110-CM

for 42U cabinet with1100 depth(built-in type), 2 side plate for one side

NCK42-120 side door

NCK42-120-CM

for 42U cabinet with1200 depth(built-in type), 2 side plate for one side

NCK47-100 side door

NCK47-100-CM

for 47U cabinet with1000 depth(built-in type), 2 side plate for one side

NCK47-100 side door

NCK47-110-CM

for 47U cabinet with1100 depth(built-in type), 2 side plate for one side

NCK47-120 side door

NCK47-120-CM

for 47U cabinet with1200 depth(built-in type), 2 side plate for one side

1U blank panel

CFG01-KK-A

1U blank panel

2U blank panel

CFG02-KK-A

2U blank panel

4U blank panel

CFG04-KK-A

4U blank panel

NCK fixed shelf

CFB100-A-NCK

19'', loading capacity 130KG, size 483*700

PDU installation plate

NCK-PA Z

for IDC cabinet

PDU installation plate

NCH01-1215

for cabinet with 600mm width, cold channel with 1200mm width, at the head or back of the column, right angle type, for the installation of monitoring equipment and wiring in column, 300mm height mounting plate, cold-rolled steel plate

800 functional skylight

NCH01-1215-800

for cabinet with 800mm width, cold channel with 1200mm width, at the head or back of the column, right angle type, for the installation of monitoring equipment and wiring in column, 300mm height mounting plate, cold-rolled steel plate

300 fixed skylight

NCH01-1214-300

for cabinet with 300mm width, cold channel with 1200mm width, at the middle of the column, fixed glass skylight, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel  plate

600 fixed skylight

NCH01-1214

for cabinet with 600mm width, cold channel with 1200mm width, at the middle of the column, fixed glass skylight, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel  plate

600 single rotating skylight

NCH01-1216

for cabinet with 600mm width, cold channel with 1200mm width, single open, right angle type, with 12V magnetic lock, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate, aluminium alloy, fire linkage and open automatically

600 single rotating skylight

NCH01-1212

for cabinet with 600mm width, cold channel with 1200mm width, double open, right angle type, with 12V magnetic lock, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate, aluminium alloy, fire linkage and open automatically

800mm double rotating skylight

NCH01-1212-800

for 800mm width cabinet and 1200mm width cold channel, double rotating, tight angle type, with 12V magnetic lock, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate, aluminium alloy, fire linkage and open automatically

LED light

NCH-LED-1200

for 1200mm cold channel, 300LUX at a distance of 1.2m from the LED light

Double push-and-pull door

NCH02-1212

for 1200mm height cabinet and 1200mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space

Double push-and-pull door

NCH02-1212-2200

for 2200mm height cabinet and 1200mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space

Double push-and-pull door

NCH02-1812

for 2000mm height cabinet and 1800mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space

Double push-and-pull door

NCH02-1812-2200

for 2200mm height cabinet and 1800mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space

Access control system

NCH-MJ01

Equipped with magnetic lock, access control device(IC card+password)

Access control system

NCH-MJ02

Equipped with magnetic lock, access control device(IC card+password+fingerprint), automatic door don't need magnetic lock, only access control device available

Auto single rotating sliding door(single column)

NCH02-1213-DL

for 1000-1200mm depth and 2000-2200mm height cabinet, 1200mm width cold channel, 12mm  tempered glass, electric rail, infrared sensing, reserved skylight control switch space, door box available

Auto single rotating sliding door(single column)

NCH02-1213

for 1000-1200mm depth and 2000-2200mm height cabinet, 1200mm width cold channel, 12mm  tempered glass, electric rail, infrared sensing, reserved skylight control switch space, door box available

M type wiring tray

NCH-MC

600mm width M type wiring tray on the top of the cabinet, SPCC cold-rolled steel plate, thickness 1.5mm, surface process is the same as the  cabinet

V type wiring tray

NCH-VC

600mm width M type wiring tray on the top of the cabinet, SPCC cold-rolled steel plate, thickness 1.5mm, surface process is the same as the  cabinet

Control box

NCH04-01

Control the skylight with fire linkage  function
