NCF CABINET NCF

NCF CABINET NCF

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.



  • APPLICATION
● Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
  • TECHNICAL SPECIFICATION
● Surface finish: degreasing, pickling, phosphoric, powder coating. The thickness of powder coating is 80μm-100μm.

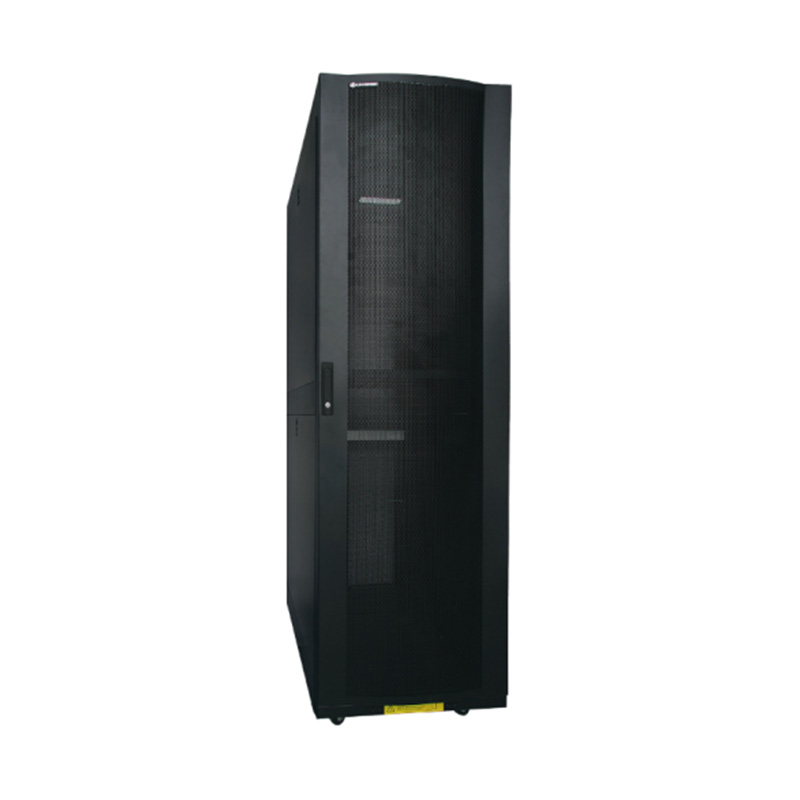

● Curved perforated front door and double-section rear door enable equipment protection, reliable operation with ventilation rate above 80%.
● Double-section side panels,  each panel can be easily assembled separately.
● Top and bottom wiring channel can be closed and adjustable.
● Backside with a pair of vertical cable management.
● Mounting rail with U mark.
● Efficient and solid cabinet connection.
● With earthing kits.
● Advanced lock.
● Optional plinth to meet under-base wiring, ventilation and rat-proof.
● Adjustable feet and heavy duty castors are available at the same time, static loading: 1600KG.
● Full range of optional accessories.
  • Main material
● Cold-rolled steel sheet. Thickness for frame 2.0mm, mounting rail 2.0mm, side panel 1.5mm, fixed shelf 1.5mm.
  • ORDER INFORMATION

Part No

Capacity/u

Width/mm

Depth/mm

Height/mm

CMwidth/m

CM Depth/m

CM Heigh/m

Volume/CBM

NCF22-68-*#☆

22U

600

900

1111

0.65

0.95

1.141

0.70

NCF22-610-*#☆

22U

600

1100

1111

0.65

1.15

1.141

0.85

NCF22-611-*#☆

22U

600

1200

1111

0.65

1.25

1.141

0.93

NCF22-612-*#☆

22U

800

1300

1111

0.65

1.35

1.141

1.00

NCF22-88-*#☆

22U

800

900

1111

0.85

0.95

1.141

0.92

NCF22-810-*#☆

22U

800

1100

1111

0.85

1.15

1.141

1.12

NCF22-811-*#☆

22U

800

1200

1111

0.85

1.25

1.141

1.21

NCF22-812-*#☆

22U

800

1300

1111

0.85

1.35

1.141

1.31

NCF27-68-*#☆

27U

600

900

1334

0.65

0.95

1.364

0.84

NCF27-610-*#☆

27U

600

1100

1334

0.65

1.15

1.364

1.02

NCF27-611-*#☆

27U

600

1200

1334

0.65

1.25

1.364

1.11

NCF27-612-*#☆

27U

600

1300

1334

0.65

1.35

1.364

1.20

NCF27-88-*#☆

27U

800

900

1334

0.85

0.95

1.364

1,10

NCF27-810-*#☆

27U

800

1100

1334

0.85

1.15

1.364

1.33

NCF27-811-*#☆

27U

800

1200

1334

0.85

1.25

1.364

1.45

NCF27-812-*#☆

27U

800

1300

1334

0.85

1.35

1.364

1.57

NCF42-66-*#☆

42U

600

700

2000

0.65

0.75

2.0

0.845

NCF42-68-*#☆

42U

600

900

2000

0.65

0.95

2.0

1.105

NCF42-610-*#☆

42U

600

1100

2000

0.65

1.15

2.0

1.365

NCF42-88-*#☆

42U

800

900

2000

0.85

0.95

2.0

1.445

NCF42-810-*#☆

42U

800

1100

2000

0.85

1.15

2.0

1.785

NCF48-68-*#☆

48U

600

900

2267

0.65

0.95

2.297

1.42

NCF48-610-*#☆

48U

600

1100

2267

0.65

1.15

2.297

1.72

NCF48-611-*#☆

48U

600

1200

2267

0.65

1.25

2.297

1.87

NCF48-612-*#☆

48U

600

1300

2267

0.65

0.95

2.297

2.02

NCF48-88-*#☆

48U

800

900

2267

0.85

0.95

2.297

1.85

NCF48-810-*#☆

48U

800

1100

2267

0.85

1.15

2.297

2.25

NCF48-811-*#☆

48U

800

1200

2267

0.85

1.25

2.297

2.44

NCF48-812-*#☆

48U

800

1300

2267

0.85

1.35

2.297

2.65

*=Front door (A=steel casement door B=Curved perforated door  L=double swing steel door N=Smoky-gray glass door with both sides punched)

#=Rear door ((A=steel casement door B=Curved perforated door L=double swing steel door N=Smoky-gray glass door with both sides punched))

☆=Colors A=Black(RAL9004),B=Gray(RAL7044)
