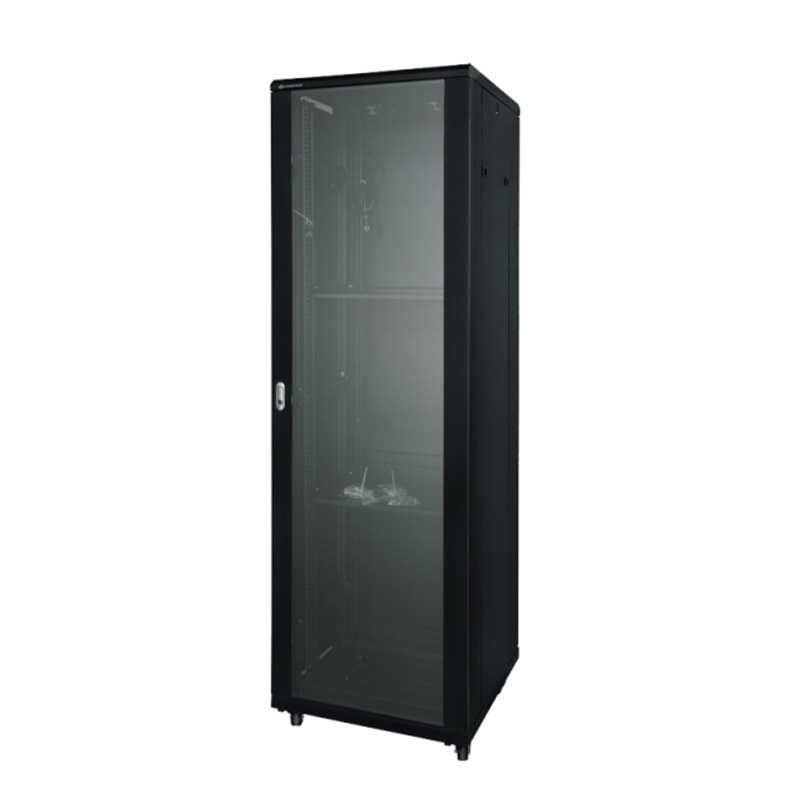

NCE Network Cabinet NCE

NCE Network Cabinet NCE

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
  • APPLICATION
● Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
  • TECHNICAL SPECIFICATION
● Exquisite design with precise craftsmanship.
● Adjustable and heavy duty castors are available at the same time. Static loading:300KG.
● The top and bottom wiring channel can be closed and adjusted.
● Vented front door and rear door enable ventilation and reliable operation.
● Rack’s side panel can be easily assembled.
● Surface finish: degreasing, pickling, phosphoric, powder coating.
● Adjustable feet and heavy duty castors are available at the same time, static loading: 800kg. (with adjustable feet).
● Height, width, and depth selectable, full range of optional accessories.
  • Main material
● Cold-rolled steel sheet. Thickness for frame 0.8mm, mounting rail 1.2mm, smoky grey glass 5mm.
  • ORDER INFORMATION

Part No

Capacity/U

Width/mm

Depth/mm

Height/mm

CM/Width/m

CM/Depth/m

CM/Height/m

Volume/（M3 ）

NCE18-66-*#☆

18U

600

600

988

0.63

0.63

1.02

0.40

NCE22-66-*#☆

22U

600

600

1166

0.63

0.63

1.2

0.48

NCE27-66-*#☆

27U

600

600

1388

0.63

0.63

1.42

0.56

NCE32-66-*#☆

32U

600

600

1610

0.63

0.63

1.64

0.65

NCE37-66-*#☆

37U

600

600

1833

0.63

0.63

1.86

0.74

NCE42-68-*#☆

42U

600

600

2055

0.63

0.63

2.08

0.83

NCE47-66-*#☆

47U

600

600

2277

0.63

0.63

2.3

0.91



Part number configuration tool

NCA18---66 ( 18U)

NCA 18-66 ( x) Use the x to specify the capability of the cabinets:

18= 18 U 22 = 22 U 27 = 27 U 32 = 32U 36=36U 42=42U 46= 46U
