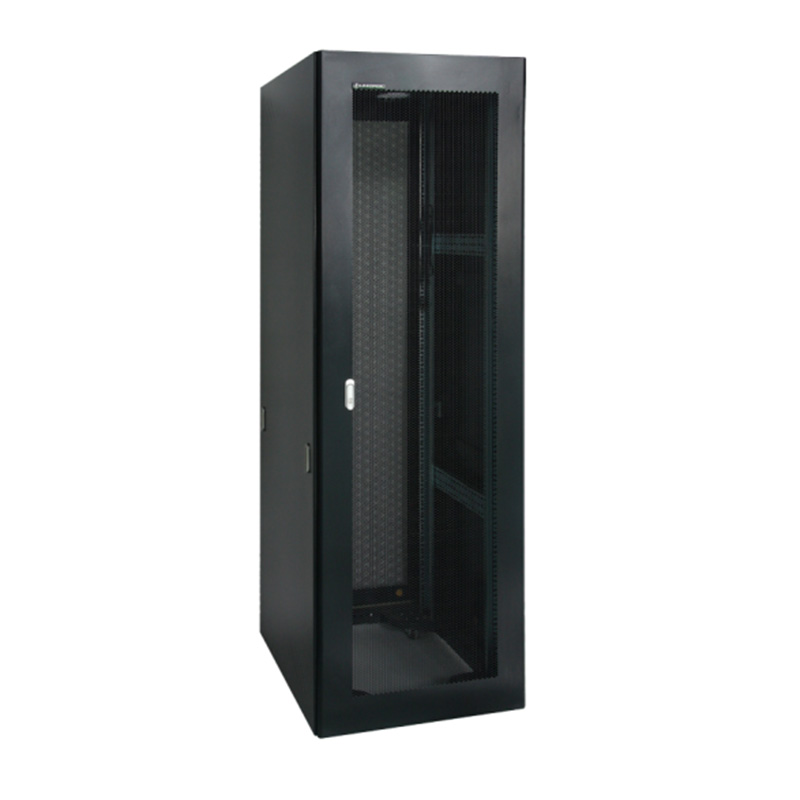

NCC Server Cabinet NCC

NCC Server Cabinet NCC

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
  • APPLICATION
● Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
  • TECHNICAL SPECIFICATION
● Surface finish: degreasing, pickling, phosphoric, powder coating. The thickness of powder coating is 80μm-100μm, complying with ROHS.
● Curved perforated front door and double-section rear door enable equipment protection, reliable operation with entilation rate above 80%.
● Nine-fold section steel for the frame.
● Mounting rail and mounting angle finish Electric galvanizing.
● Top and bottom wiring channel can be closed and adjusted. Bottom plate with earthing wire.
● Optional plinth to meet under-base wiring, ventilation and rat-proof.
● Advanced lock. Efficient and solid cabinet connection.
● Adjustable feet and heavy duty castors are available at the same time, static loading: 1000KG.
● Full range of optional accessories.
● Mounting rail with U mark.
  • Main material
● Cold-rolled steel sheet. Thickness for frame (Nine-fold section steel)1.5mm, mounting rail 2.0mm, side panel 1.5mm.
  • ORDER INFORMATION

Part No

Capacity/u

Width/mm

Depth/mm

Height/mm

CMwidth/m

CM Depth/m

CM Heigh/m

Volume/CBM

NCC37-66-*#☆

37U

600

700

1800

0.65

0.65

1.8

0.7605

NCC37-68-*#☆

37U

600

800

1800

0.65

0.85

1.8

0.9945

NCC37-610-*#☆

37U

600

1000

1800

0.65

1.05

1.8

1.2285

NCC37-88-*#☆

37U

800

800

1800

0.85

0.85

1.8

1.3005

NCC37-810-*#☆

37U

800

1000

1800

0.85

1.05

1.8

1.6065

NCC42-66-*#☆

42U

600

600

2000

0.65

0.65

2.0

0.845

NCC42-68-*#☆

42U

600

800

2000

0.65

0.85

2.0

1.105

NCC42-610-*#☆

42U

600

1000

2000

0.65

1.05

2.0

1.365

NCC42-88-*#☆

42U

800

800

2000

0.85

0.85

2.0

1.445

NCC42-810-*#☆

42U

800

1000

2000

0.85

1.05

2.0

1.785

NCC47-66-*#☆

47U

600

600

2200

0.65

0.65

2.2

0.9295

NCC47-68-*#☆

47U

600

800

2200

0.65

0.85

2.2

1.2155

NCC47-610-*#☆

47U

600

1000

2200

0.65

1.05

2.2

1.5015

NCC47-88-*#☆

47U

800

800

2200

0.85

0.85

2.2

1.5895

NCC47-810-*#☆

47U

800

1000

2200

0.85

1.05

2.2

1.9635

*=Front door   A=steel casement door D=Perforation steel door  F=double swing steel door(perforated)  H=curved concavo-convexperforation steel door( hexagonal Type)  I=concavo-convex
perforation steel doo ( hexagonal Type)  J=double swing steel door

#=Rear door  A=steel casement door D=Perforation steel door F=double swing steel door(perforated) H=curved concavo-convexperforation steel door( hexagonal Type) I=concavo-convex
perforation steel doo ( hexagonal Type) J=double swing steel door

☆ = Colors A= Black(RAL9004)  B=Gray(RAL7044)
