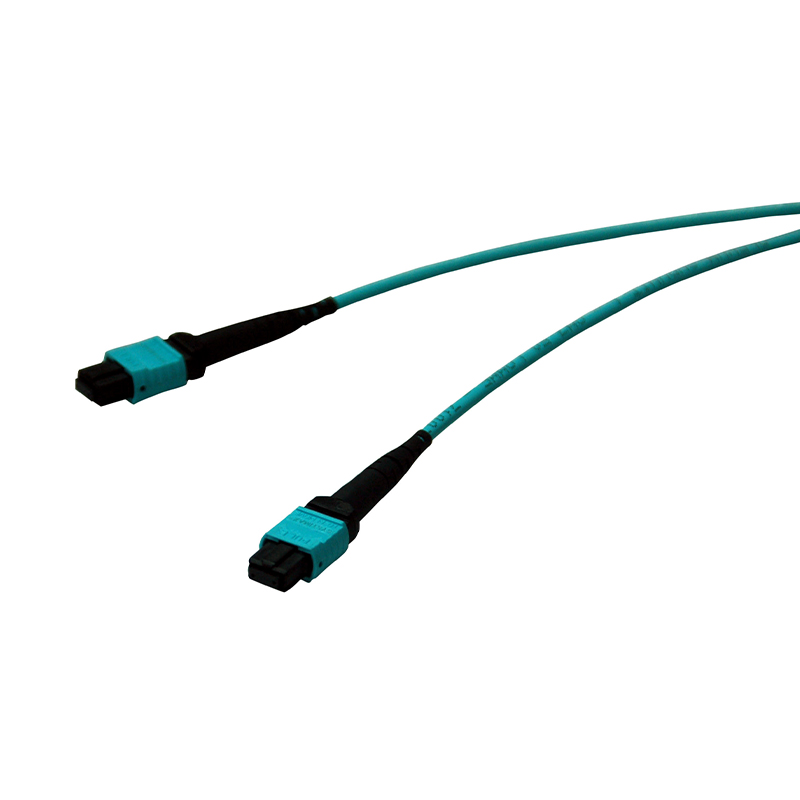

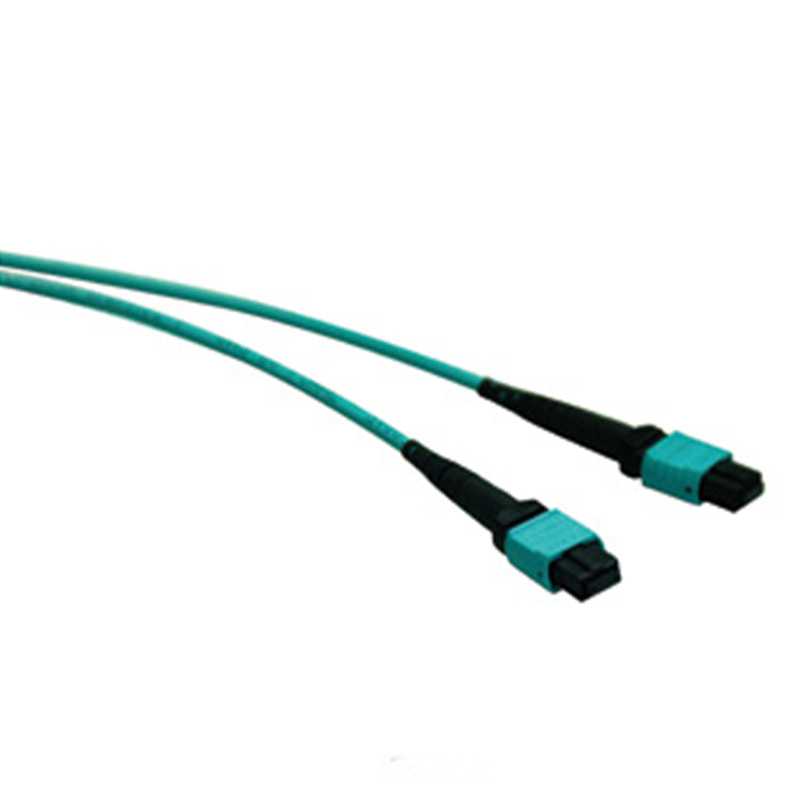

MPO TRUNK CABLE FAM66

MPO TRUNK CABLE FAM66

Complied with the standard TIA-568C.3-2008  and YD/T1272.5-2009, it was widely used in the pre-terminated system of the IDC and blocks. This system applies to the 10G Ethernet transmissions and it is also available to the updated system for 40G/100G in the future. MPO trunk cable helps to fast installation for Data Center and other Fiber Optic environment. Its efficient plug and play structure which can significantly lower the installation and daily maintenance costs surpasses MDA, HDA and EDA regional module cassette or fan-out fiber connections. The high quality fiber optic cable and MPO accessories makes up the Linkbasic MPO Trunk cable and provides lower insertion loss and higher return loss so that it fully complied to the high speed network system.

  • TECHNICAL SPECIFICATION
● Ready equipped MPO connectors and technical tensile and resilient design for 400N and 100N/CM
● Special test for all the ports of the trunk cable makes higher reliability
● Low loss MPO connectors on both two sides
● Easily updated to the next generation for 40G and 100G
● 12 to 144 cores, OM3, OM4 and OS2 fiber optic cable, length in meters.
● Outside coatings can be OFNR, OFNP and LSZH, etc.
● Polarity A, B or C Circle, small outside diameter structure for easily preservation and cable laying.
● Faster equip
● Trunk cabling
● Pre-terminated module or MPO adapters connected
● Protective sleeves for water proofing, dust prevention, resilient and tensile resistance -20 C~+75 C
●  OFNR can pass through UL-1666 flaming test. OFNR can get through UL-910 flaming test, LSZH meets IEC60332-1 and IEC60332-3 standard
●  MPO connectors color
●  Multi mode standard loss: beige
●  Multi mode low loss: aqua
●  Single mode standard loss: green
●  Single mode low loss: Yellow

  • TRANSMISSION PERFORMANCE

cores

OD(mm)

MIN bending radius(dynamic)mm

MIN bending radius(static)mm

MAX install tension

Short term resilience

12

4.5

45

22

450

100

24

8

80

40

600

100

48

/

80

40

600

100

72

/

100

50

600

100

96

/

100

50

600

100

114

/

100

50

600

100
  • TECHNICAL PARAMETER

Connector performance

Insertion loss(average)

Insertion loss (max)

Return loss

MPO low loss(Multimode)

0.10dB

0.30dB

N/A

MPO standard loss(Multimode)

0.20dB

0.50dB

N/A

MPO low loss(single mode)

0.10dB

0.35dB

>60dB

MPO standard loss(single mode)

0.20dB

0.75dB

>60dB
  • ORDER INFORMATION

Part Number

Description

Package

FAM66-12-OM3-*

12cores Multi mode  MPO-MPO trunk cable

1PCS

FAM66-12-OM4-*

12cores Multi mode  MPO-MPO trunk cable

1PCS

FAS66-12-OS2-*

12cores Single mode MPO-MPO trunk cable

1PCS

FAM66-24-OM3-*

24cores Multi mode  MPO-MPO trunk cable

1PCS

FAM66-24-OM4-*

24cores Multi mode  MPO-MPO trunk cable

1PCS

FAS66-24-OS2-*

24cores Single mode MPO-MPO trunk cable

1PCS
