MAX. Matual Capacitance @ kHz |
≤5.6 nF/100M |
|
MAX. Capacitance unbalance (pF/ 100m) |
≤330pF/100M |
|
Nominal Velocity of Propagation |
69% |
|
Max. Delay Skew (ns/100m) |
45ns/100M |
|
Max. Conductor DC Resistance @ 20 Deg. C |
7.32Ω /100M(23AWG) |
|
Max. DC Resistance unbalance @ 20 Deg. C |
≤2% |
|
Max. Insulation resistance (MΩ/ k m) |
5000 |
|
Max. Operating Voltage-UL |
300V |
|
Operating Temp. Range |
-20~75℃ |
|
Max. Recommended |
100N |
|
PullingTension Min. Bend Radius (Install) |
4x O.D. |
|
Flame Test |
CMX, CMR, CM |
|
Structure |
Construction |
UTP |
|
Number of Pairs |
4 Pair |
|
|
AWG |
23AWG |
|
|
Conductor Dimension (mm) |
0.565 |
|
|
Solid or Stranded; Bare or Tinned |
Solid Bare Copper
|
|
|
Insulation |
insulation material |
HDPE |
|
Insulation Dimension [mm) |
1.02 |
|
|
Number Colour (Ring or Strip marking) |
1.White/B[ue(Ring) & Blue |
|
|
Cross Filler |
Yes |
|
|
Shield |
IndividuaISinleld & Material |
No |
|
Outer Shield & Material |
No |
|
|
Drain Wire |
No |
|
|
Outer Jacket |
Outer Jacket Material |
PVC or（LSZH） |
|
Outer Jacket Ripcord |
Based On Customer Requirements |
|
|
Overall Nominal Diameter (mm) |
23AWG UTP nom:6.2±o.3mm |
|
Part number |
Description |
AWG |
Standard color |
Packing Type |
Carton |
Carton measurement |
Carton weight |
|

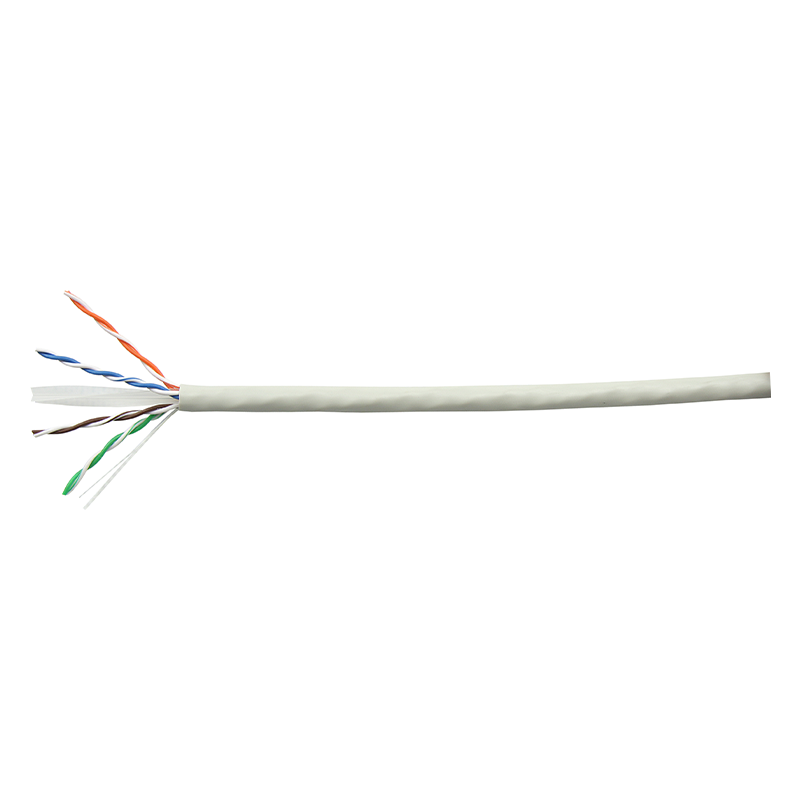

CLA04-UC6 |
Cat 6 UTP solid cable |
23AWG |
RAL7035 |
Box |
305m(1000ft) |
L36.5 cm×W25.5cm×H37cm |
14.10KG |
|
CLA04-UC6-CMR |
Cat 6 UTP solid cable |
23AWG |
RAL7035 |
Box |
305m(1000ft) |
L36.5 cm×W25.5cm×H37cm |
14.10KG |
|
CLA04-UC6-LSZH |
Cat 6 UTP solid cable |
23AWG |
RAL7035 |
Box |
305m(1000ft) |
L36.5 cm×W25.5cm×H37cm |
13.90KG |
