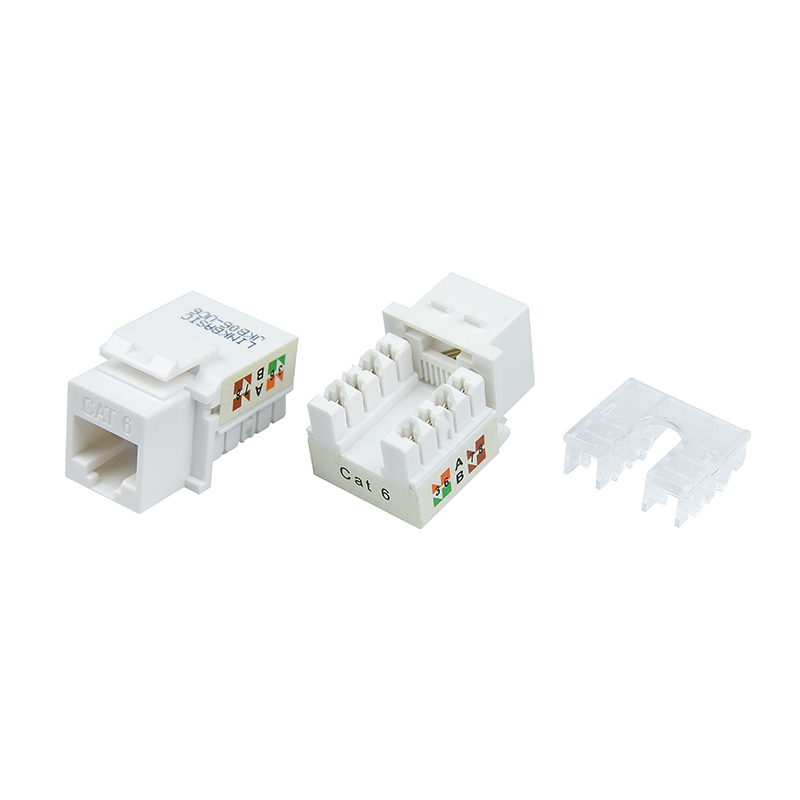

Cat 6 UTP Keystone Jack JKB06-UC6

Cat 6 UTP Keystone Jack JKB06-UC6

As part of  LINKBASIC  Cat6  UTP  solution,  Cat6  UTP  Keystone jacks’ performance exceeds all requirements for Cat6 components, including  NEXT,  FEXT,  attenuation,  and return loss;  guarantees 350MHZ broadband transmission, long-term reliability and stability; suitable for connection between workspace and Equipment room.

  • CONSTRUCTION

Description

Parameter

Contact resistance(max)

100mΩ

Insulation resistance（min）

500MΩ

Return loss（dB）

5.8dB

Next（dB）

4.7dB

Ps next(dB)

5.5dB
  • TECHNICAL SPECIFICATION
● Exquisite and compact appearance.
● Unique design of balance circuit board and line pair decrease cross talk and increase allowance.
● Whole zinc-alloy shielding coat comply with Industry code of conduct.
● Available in both T568A/B wiring. Wire map are printed clearly on jacks.
● 350MHZ available bandwidth provides more allowance than Cat6.
● Backward compatibility for Cat6, cat5E and Cat5.
● Compact jack design,8 positions and 8 conductors
● Contact : phosphor bronze, phosphor bronze with 6 to 50μ"gold plate
● Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
● Easy to be terminated, low attenuation loss and high return loss
● High reliability and superior performance
● Available in different colors
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

JKA09-UC6

Cat6 unshielded keystone jacks (90 degree)

White

25PCS

250PCS

L 53.5cm×W 31.3cm×H 23.4cm

4.20KG

JKE11-UC6

Cat6 unshielded through coupler

Beige

25PCS

250PCS

L 53.5cm×W 31.3cm×H 23.4cm

3.50KG
