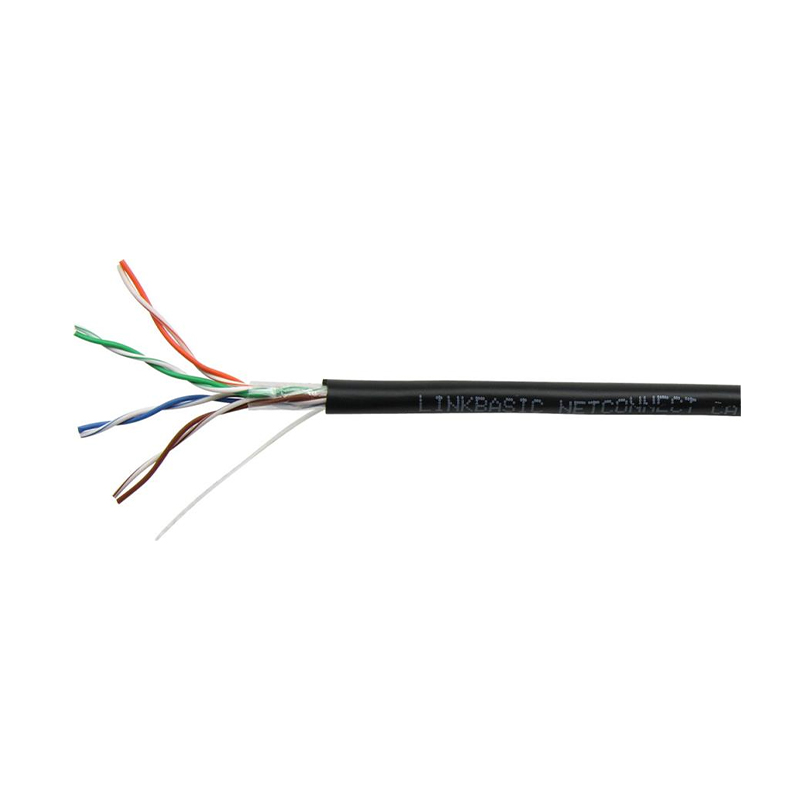

Cat 5E UTP Solid Cable CLB04-UC5E

Cat 5E UTP Solid Cable CLB04-UC5E

● Rated temperature:70℃
● Reference standard: UL Subject 444, EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156
● Solid bare copper conductor
● Colour-coded PE insulation
● Rip cord (optional)
● PVC or LSZH jacket
● Packaging: Reel, Reel in Box
  • ELECTRICAL CHARACTERISTICS

MAX. Matual Capacitance @ kHz

≤5.6 nF/100M

MAX. Capacitance

unbalance (pF/ 100m)

≤330pF/100M

Nominal Velocity of

Propagation

69%

Max. Delay Skew (ns/100m)

45ns/100M

Max. Conductor DC

Resistance @ 20 Deg. C

9.5Ω /100M

Max. DC Resistance

unbalance @ 20 Deg. C

≤2%

Max. Insulation resistance

(MΩ/ k m)

5000

Max. Operating Voltage-UL

300V
  • CONSTRUCTION

Structure

Construction

UTP

Number of Pairs

4 Pair

AWG

24AWG

Conductor Dimension (mm)

0.50

Solid or Stranded;

Bare or Tinned

Solid Bare Copper



Insulation

insulation material

HDPE

Insulation Dimension [mm)

0.88

Number Colour

(Ring or Strip marking)

1.White/B[ue(Ring) & Blue
2.White/0range(Nng) & Oange
3.White/Gem(Rhg) & Green
4.White/Brown(Ping) & Btuwn

Cross Filler

No

Shield

IndividuaISinleld & Material

No

Outer Shield & Material

No

Drain Wire

No

Outer Jacket

Outer Jacket Material

PVC or（LSZH）

Outer Jacket Ripcord

Based On Customer Requirements

Overall Nominal Diameter (mm)

24AWG UTP nom:4.8±o.3mm
  • MECHANICAL CHARACTERISTICS

Operating Temp. Range

-20~75℃

Max. Recommended

100N

PullingTension

Min. Bend Radius (Install)

10x O.D.

Flame Test

CMX, CMR, CM
  • APPLICATION
● 100 Base-T4
● 100Base-TX
● 100VG-AnyLAN
● 155Mbps ATM
● 622Mbps ATM
  • ORDER INFORMATION

Part number

Description

AWG

Standard color

Packing Type

Carton

Carton measurement

Carton weight

CLB04-UC5E

Cat 5E  UTP solid cable

24AWG

RAL9005

Box

305m(1000ft)

L36.5 cm×W25.5cm×H37cm

9.60KG
