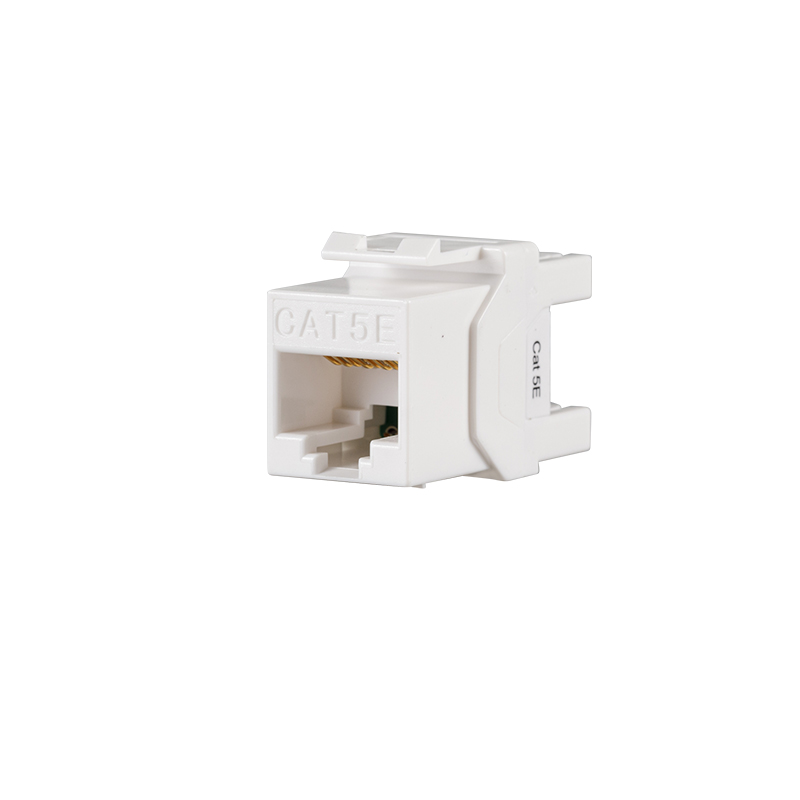

CAT 5E UTP Keystone Jacks JKB09-UC5E

CAT 5E UTP Keystone Jacks JKB09-UC5E

Horizontal style Cat5E 90 degree keystone jacks, it features dual color-coded wiring label with both T568A/B  wiring pattern.  Rear termination field for easy termination of a jack while installed in a wall plate, surface mount boxes, and blank patch panels for a wide variety of applications.

  • CONSTRUCTION

Description

Parameter

Contact resistance(max)

100mΩ

Insulation resistance（min）

500MΩ

Return loss（dB）

5.8dB

Next（dB）

4.7dB

Ps next(dB)

5.5dB
  • TECHNICAL SPECIFICATION
● Available in Cat5E, T568A/B wiring, meet or exceed TIA/EIA Cat5E requirements
● Housing : high temperature thermoplastic
● Compact jack design,8 positions and 8 conductors
● Contact : phosphor bronze, phosphor bronze with 6 to 50μ"gold plate
● Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
● Easy to be terminated, low attenuation loss and high return loss
● High reliability and superior performance
● Available in different colors
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

JKA09-UC5E

Cat6 unshielded keystone jacks (180 degree)

Black

25PCS

250PCS

L 53.5cm×W 31.3cm×H 23.4cm

3.80KG
