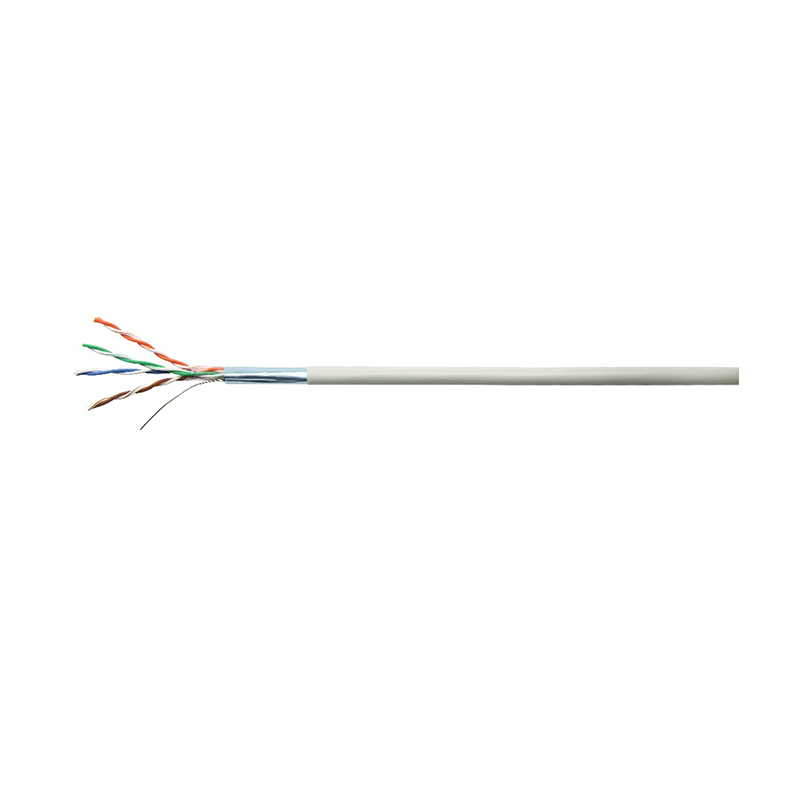

CAT 5E FTP Solid Cable CLA04-SC5E

CAT 5E FTP Solid Cable CLA04-SC5E

Rated temperature:70℃
Reference standard: UL Subject 444, EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61161
Solid bare copper conductor
Colour-coded PE insulation
Rip cord (optional)
PVC or LSZH jacket
Packaging: Reel,Reel
  • ELECTRICAL CHARACTERISTICS

MAX. Matual Capacitance @ kHz

≤5.6 nF/100M

MAX. Capacitance

unbalance (pF/ 100m)

≤330pF/100M

Nominal Velocity of

Propagation

69%

Max. Delay Skew (ns/100m)

45ns/100M

Max. Conductor DC

Resistance @ 20 Deg. C

9.5Ω /100M

Max. DC Resistance

unbalance @ 20 Deg. C

≤2%

Max. Insulation resistance

(MΩ/ k m)

5000

Max. Operating Voltage-UL

300V

  • CONSTRUCTION

Structure

Construction

FTP

Number of Pairs

4 Pair

AWG

24AWG

Conductor Dimension (mm)

0.515

Solid or Stranded;

Bare or Tinned

Solid Bare Copper

Insulation

insulation material

HDPE

Insulation Dimension [mm)

1.03

Number Colour

(Ring or Strip marking)

1.White/B[ue(Ring) & Blue
2.White/0range(Nng) & Oange
3.White/Gem(Rhg) & Green
4.White/Brown(Ping) & Btuwn

Cross Filler

No

Shield

IndividuaISinleld & Material

No

Outer Shield & Material

Yes (AL Foil)

Drain Wire

Yes (Tinned Copper)

Outer Jacket

Outer Jacket Material

PVC or(LSZH)

Outer Jacket Ripcord

Based On Customer Requirements

Overall Nominal Diameter (mm)

6.2±0.3

  • MECHANICAL CHARACTERISTICS

Operating Temp. Range

-20~75℃

Max. Recommended

100N

PullingTension

Min. Bend Radius (Install)

10x O.D.

Flame Test

CMX,

  • APPLICATION
100 Base-T4
100Base-TX
100VG-AnyLAN
1000Base-T
1000Base-TX
155Mbps ATM
622Mbps ATM
  • ORDER INFORMATION

Part number

Description

AWG

Standard color

Packing Type

Carton

Carton measurement

Carton weight

CLA04-SC5E

Cat 5E FTP solid cable

24AWG

RAL7035

Reel

305m(1000ft)

Φ38cm × H27.5cm

12.80KG

CLA04-SC5E-CMR

Cat 5E FTP solid cable

24AWG

RAL7035

Reel

305m(1000ft)

Φ38cm × H27.5cm

12.80KG

CLA04-SC5E-LSZH

Cat 5E FTP solid cable

24AWG

RAL7035

Reel

305m(1000ft)

Φ38cm × H27.5cm

12.40KG

CLA04-SFC5E

Cat 5E FTP solid cable

24AWG

RAL7035

Reel

305m(1000ft)

Φ38cm × H27.5cm

19.90KG

CLA04M-SC5E

Cat 5E FTP solid cable

24AWG

RAL7035

Reel

305m(1000ft)

Φ38cm × H27.5cm

12.20KG
