● Design to mount to any standard 19" rack or cabinet

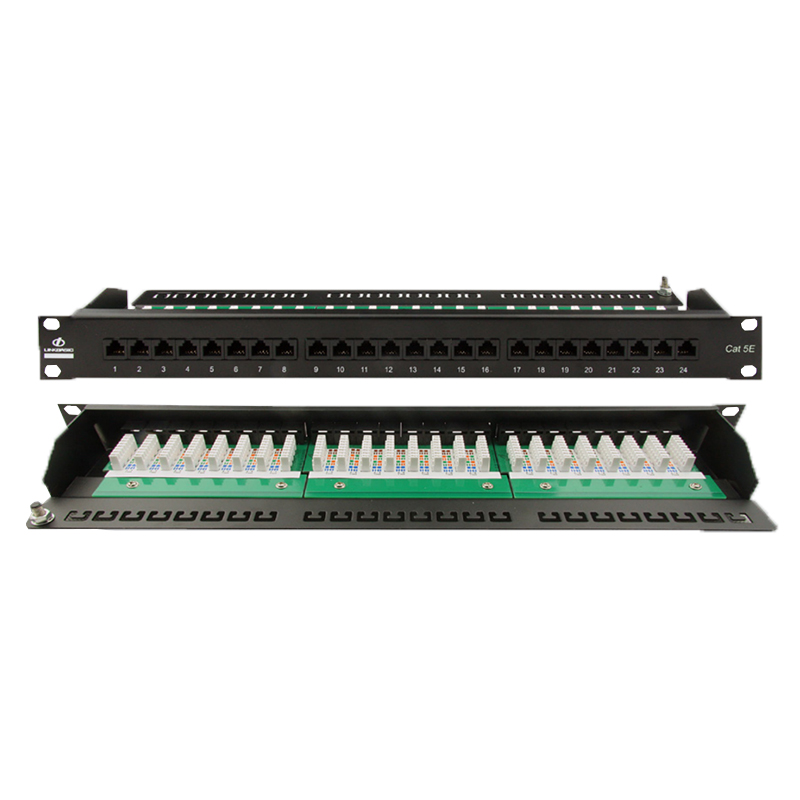

● 24 -port Cat 5E shielded Patch panel
● Space saving, high-density 1U
● Black Electrostatic Powder-Coated Steel: phosphor bronze with tin plating over nickel. Meet or exceed the requirement of ANSI /TIA/EIA 568B.2
● Use keystone jacks and keystone inserts to configure your panel to accommodate a variety of schemes
● Sturdy Aluminum Plate around RJ 45 Jacks
● Phosphor bronze with 6-50 micro inches gold plated
● Available with T568 A. T568 B wiring pattern and meeting the requirement of Cat 6A standard
● Color Coded TIA/EIA 568A (international) and 568B (AT&T Standard) Wiring For Easy Installation
● Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires
● Metal sheet: Corrosion resistant steel
● Plastic: fire self -extinguish high impact plastic
|
Part number
|
Description
|
standard color
|
Inner box
|
Carton
|
Carton measurement
|
Carton weight
|
|
PNS24-SC6
|
24-port Cat5e shielded patch panels (IDC style)
|
Black
|
1PCS
|
5PCS
|
L 53.5cm× W 31.3cm × H 23.4cm
|
10.00KG
|
