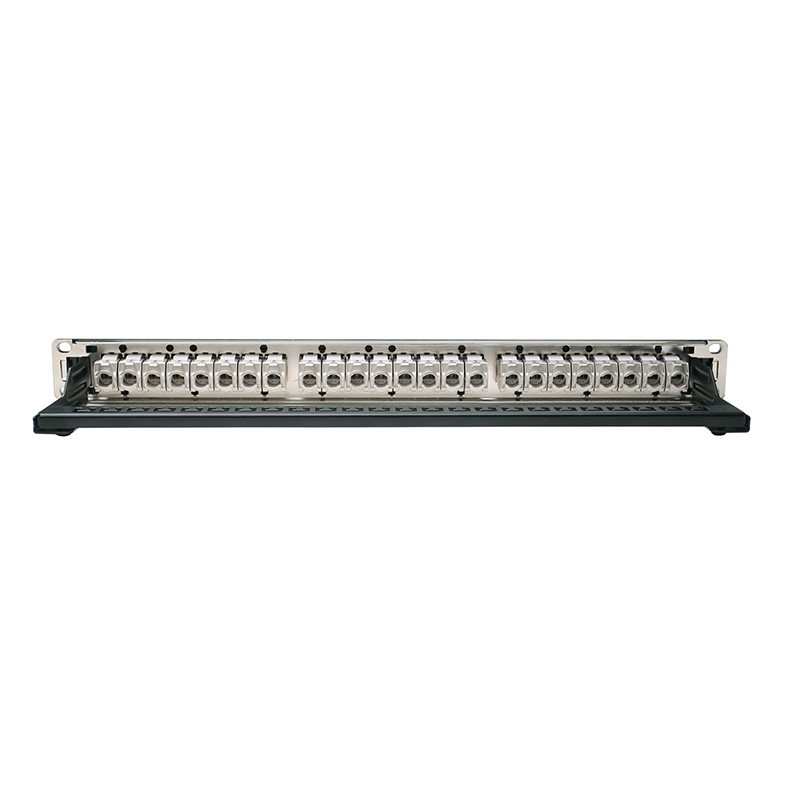

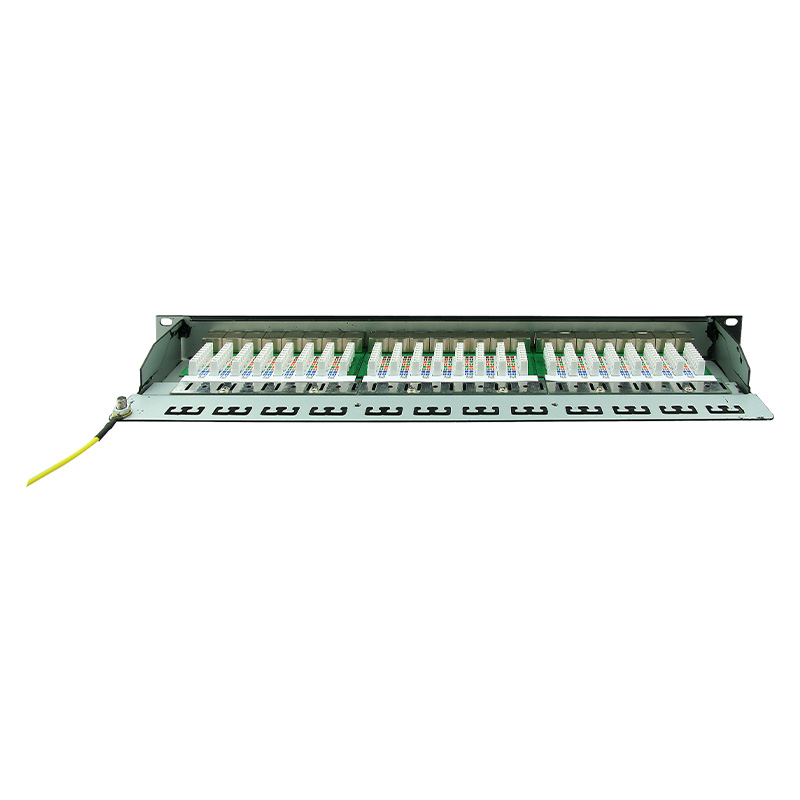

Cat 6 FTP 24-Port Patch Panel PNA24-SC6

Cat 6 FTP 24-Port Patch Panel PNA24-SC6

The shielded patch panels are loaded with shielded keystone jacks, which are housed in a closure full shielding metal enclosure designed to meet highest industry requirement. A shielded version is also available to maximum protection from EMI/RFI interference. By utilizing fully shielded jacks and connecting hardware, you can reduce the effects of interference on the network data transmissions.

  • TECHNICAL SPECIFICATION
● Design to mount to any standard 19" rack or cabinet24 -port Cat 6A shielded Patch panel
● Space saving, high-density 1U
● Black Electrostatic Powder-Coated Steel: phosphor bronze with tinplating over nickel. Meet or exceed the requirement of ANSI /TIA/EIA 2
● Use keystone jacks and keystone inserts to configure your panel to accommodate a variety of schemes
● Sturdy Aluminum Plate around RJ 45 Jacks
● Phosphor bronze with 6-50 micro inches gold plated
● Available  with T568 A. T568  B  wiring  pattern  and  meeting  the requirement of Cat 6A standard
● Color Coded TIA/EIA 568A (international) and 568B (AT&T Standard)
● Wiring For Easy Installation
● Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires
● Metal sheet: Corrosion resistant steel
● Plastic: fire self -extinguish high impact plastic
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

PNA24-SC6

24-port Cat6 unshielded patch panels (jack style) (JKS09-SC6)

Black

1PCS

10PCS

L 53.5cm× W 31.3cm × H 23.4cm

17.00KG
