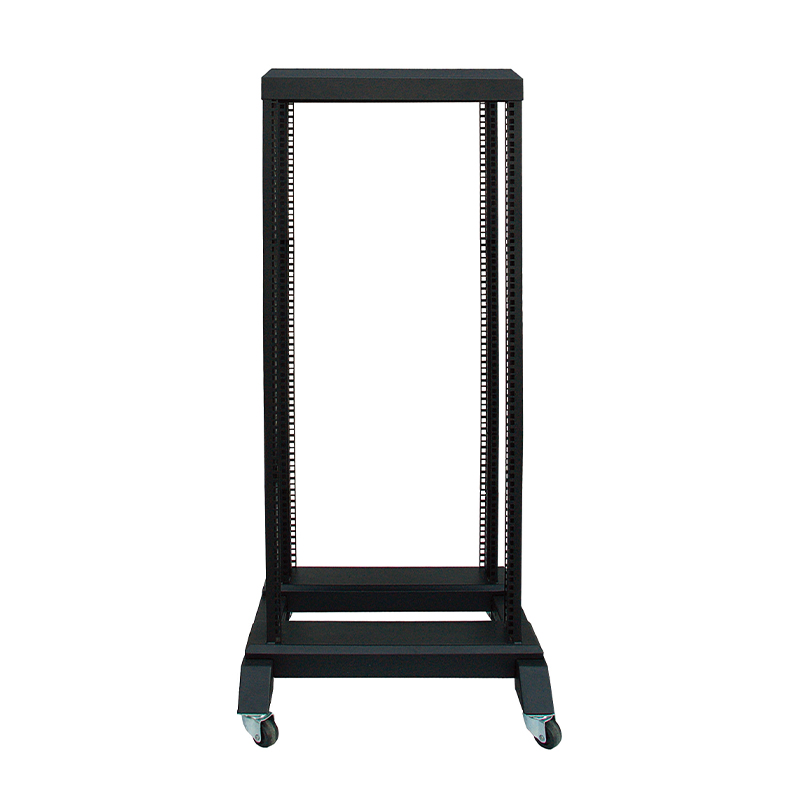

DRB OPEN RACK DRB18-66-A

DRB OPEN RACK DRB18-66-A

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard.
Compatible with metric ETSI and 19 inch international standard.
  • APPLICATION
● Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server computer and precision electronic equipments.
  • TECHNICAL SPECIFICATION
● Modular design, easily assembles and disassemble for delivery, low cost.
● Various optional accessories according to requirements.
● Static load: 150kg.
● Lever of protection: IP20.
● Surface  finish:  Degreased,  acid cleaned,  phosphoric,  water cleaned,electro-static powder coating, meet ROHS standard.
● Optional color: black/gray.
● Optional accessories.
  • Main material
● Cool rolled steel
● Thickness: Front and bottom beams:1.5mm
● Else in 1.2mm
● Tempered smoky-gray glass with thickness of 5mm.
  • ORDER INFORMATION

Part No

Capacity/U

Width/mm

Depth/mm

Height/mm

CM/Width/m

CM/Depth/m

CM/Height/m

Volume/CBM

DRB18-66-☆

18U

600

600

1040

0.63

0.31

1.00

0.1953

DRB22-66-☆

22U

600

600

1222

0.63

0.31

1.18

0.2305

DRB27-66-☆

27U

600

600

1444

0.63

0.31

1.40

0.2734

DRB32-66-☆

32U

600

600

1555

0.63

0.31

1.63

0.3183

DRB37-66-☆

37U

600

600

1666

0.63

0.31

1.85

0.3713

DRB42-66-☆

42U

600

600

1888

0.63

0.31

2.07

0.4043

DRB47-66-☆

47U

600

600

2110

0.63

0.31

2.29

0.4472

☆=Colors A=Black(RAL9004) B=Gray(RAL7044)
