LINKBASIC featured product——mini shielding module


Update time:Apr 25, 2018
Summary:

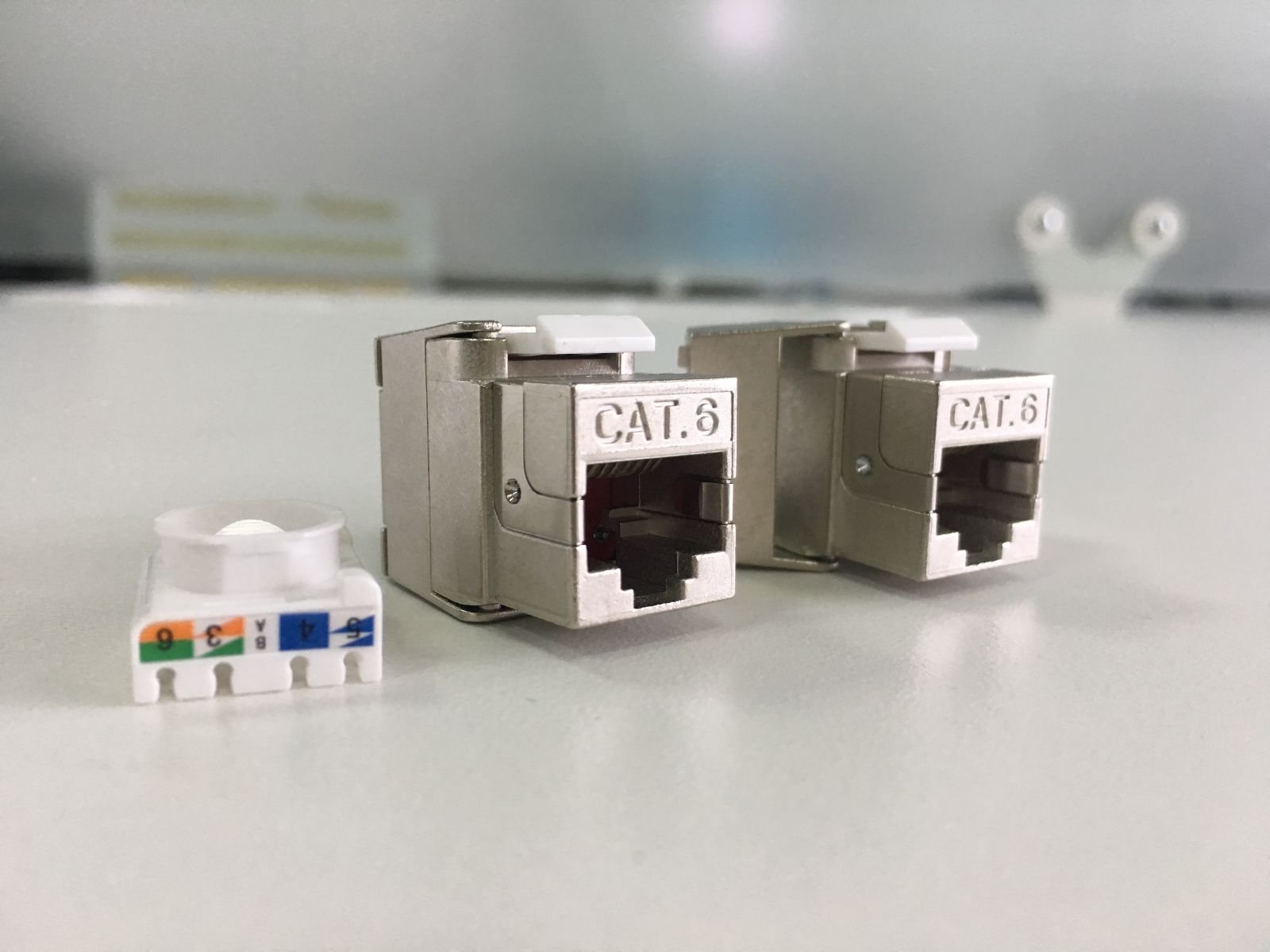

      The shielding system has good signal secrecy function and large performance margin is being used more and more.The module is widely used in the patch panel area in the workplace or equipment room. It seems simple product, for the frequent contact of maintenance personnel, which make the humanized design of the product become very important.The following is a special product introduced by LINKBASIC : mini shield module (short body module).

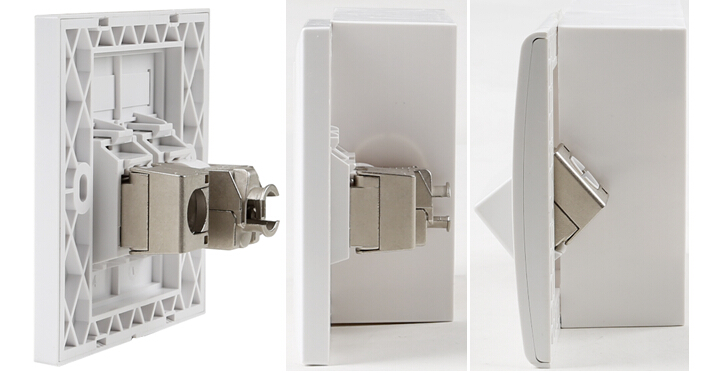

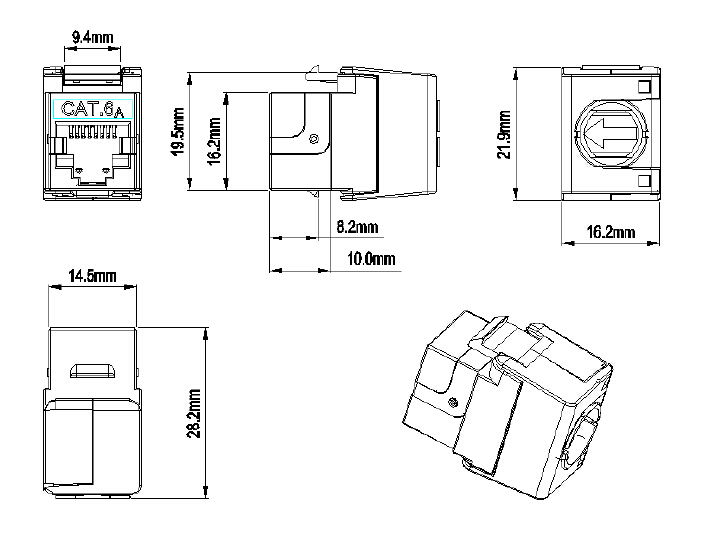

      LINKBASIC mini shield module (short body module),  15% less depth than the foreign peer products.The feature of smaller depth is typical aspect of LINKBASIC humanized design.The mini shield module can give more space to the 86 type bottom box, so that the horizontal cable has more space in the bottom box, providing better link performance.The mini shielding module matched with the LINKBASIC inclined mouth panel make the bottom box space further released,so as to construction and daily maintenance.The shielding enclosure of the module adopts zinc alloy die casting process, meet the industry standard of shielding effect, which is strong and anti-corrosion. Buckle lock type termination cap can protect conductor from falling off.

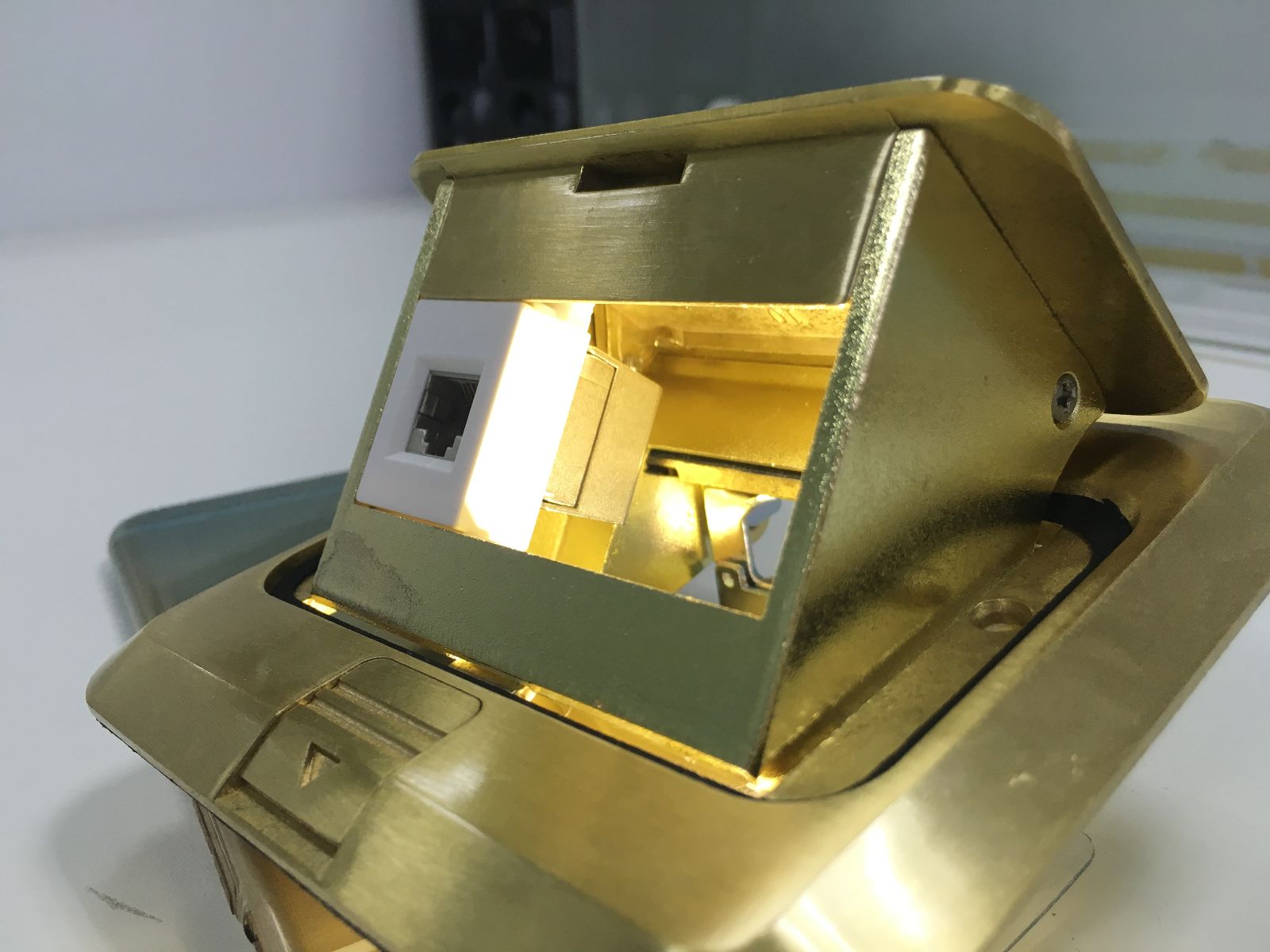

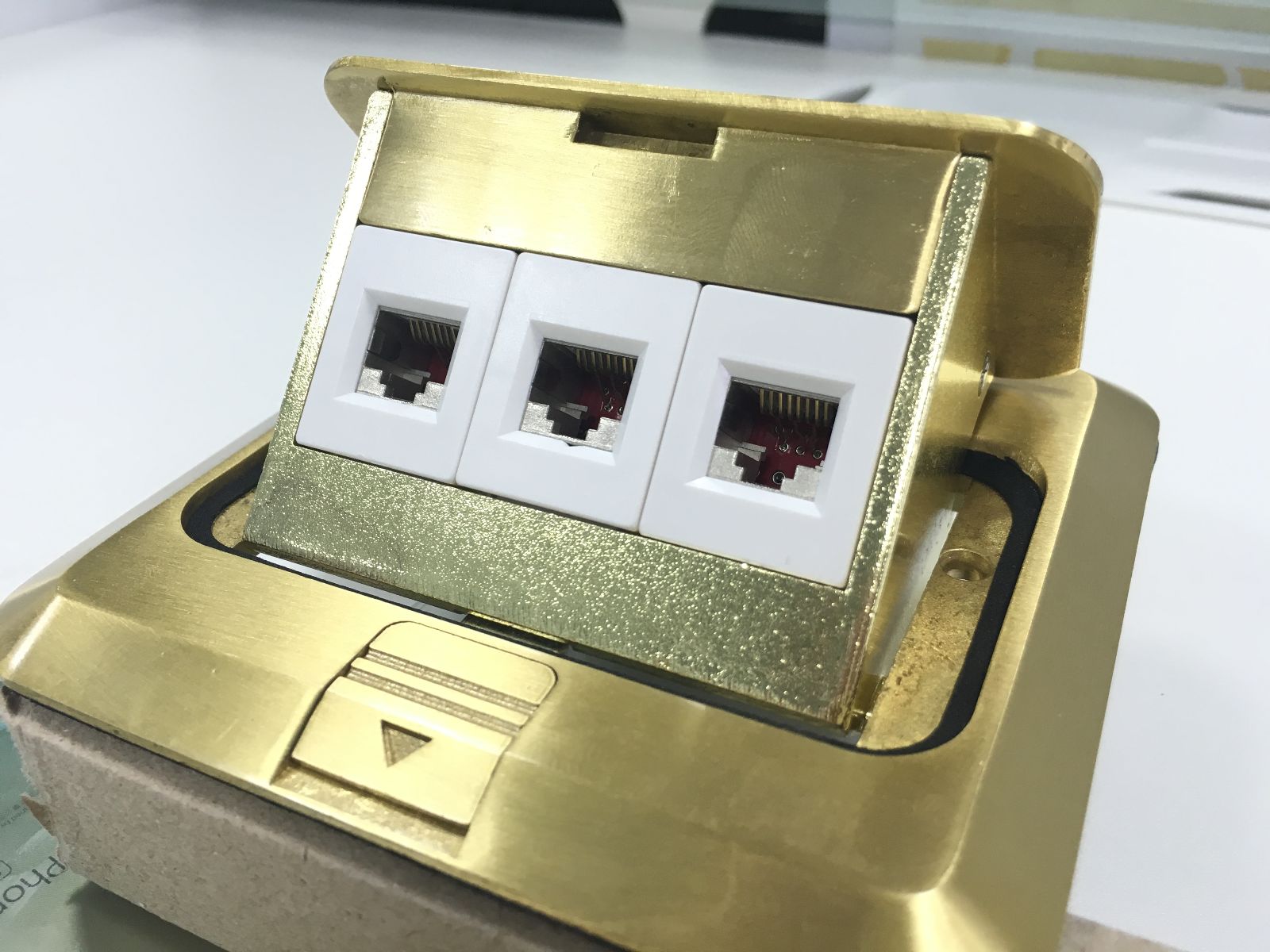

      LINKBASIC mini shielding module provides same excellent performance when used in the ground socket. Save space and provide more cable line allowance.

      Other brands shielding module in the market are unable to meet the function of ground socket using shielding module, but LINKBASIC shielding module can meet the function and provide plenty of cable arrangement space.


      The design of the LINKBASIC mini shielding module is strictly according to the TIA-568-C.2 standard, and the performance meets the requirements of Cat 6A and downward compatibility.In addition to the Chinese market, it is also widely used in European market.


      Shielded module unique PCB circuit board design can reduce the interference and keep high allowance.It complied with the human anthroposophy and use a convenient tool-less design. Available in T568A and T568B ,and the general line label is clearly marked on the module.



      The features of the LINKBASIC mini shielding module are summarized as follows:

      1. Individual design with simple,compacted out looking.

      2. The module appearance design smaller and more exquisite, saving the installation space of 86 type bottom box.

      3. It complied with the human anthroposophy. Tool-less design for the shielded keystone jack.

      4. Special PCB circuit board design can reduce the interference and keep high allowance.

      5. Zinc alloy shielding shell for the shielded keystone jack.

      6. Available in T568A and T568B , and the general line labeling is clearly marked on the module.

      7. Strong and anti-corrosion IDC wire clamp: phosphorous bronze, assuring the 250 times insertion.

      8. 23AWG
