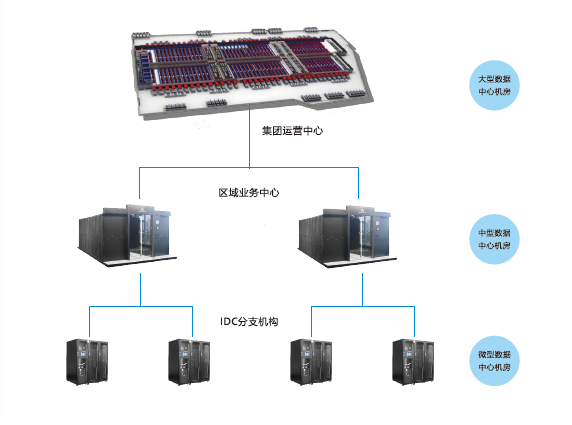

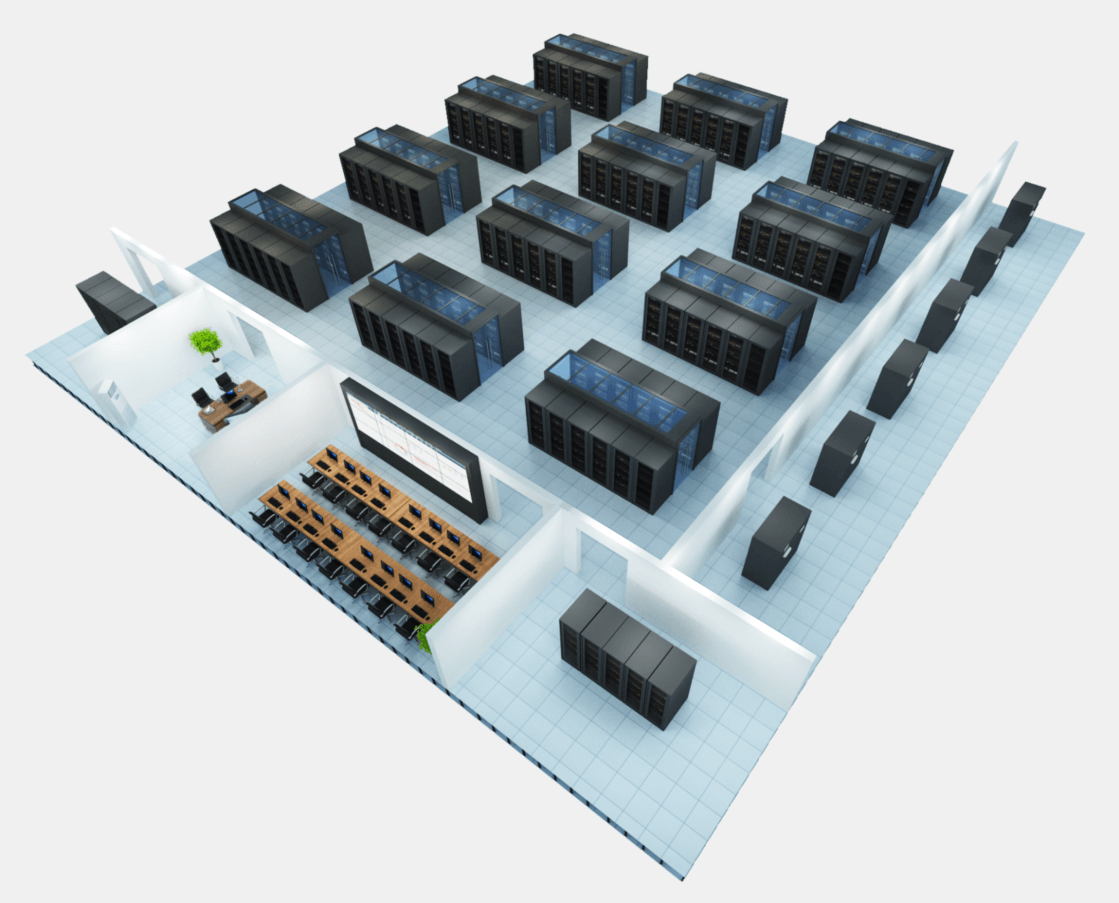

M1 series micro module data center solution is suggested to be applied in the scene of the data center room area of more than 200 square meters, such as the bank branch network, premunicaipal government agencies, small and medium-sized enterprises' data center, education, medical and other small and medium data center scenes. It can also be used in large data centers, such as public data centers and IDC data centers, through centralized deployment of multiple groups
|
Item |
Parameter |
|
Feature |
|
|
Single raw(L*W*H)mm |
L*2400*2000, L≤15m or 20m |
|
Double raw raw(L*W*H)mm |
L*3600*2000, L≤ 15m or 20m |
|
Quantity of cabinet in single module |
Single raw： 4-24, Double raw： 6-48 |
|
Power of single module (kVA) |
20-200 |
|
UPS system |
|
|
Input |
380/400/415 Vec, 50/60HZ, 3PH+N+PE |
|
Input power factor |
≥0.99 |
|
Output power factor |
≥0.9 |
|
Rated capacity (kVA) |
20-200, Online capacity expansion available |
|
Refrigerating system |
|
|
Refrigerating capacity (kW) |
Air cooling： 25/40 |
|
Dimension(W*D*H)mm |
600x1200x2000 |
|
Refrigerating mode |
Air cooling |
|
Cabinet system |
|
|
Dimension(W*D*H)mm |
600/800x1200x2000 |
|
Space available |
420 |
|
Power distribution system |
|
|
Input |
380/400/415Vec, 50/60HZ, 3PH+N+PE |
|
Rated power(A) |
0-630 |
|
Other items |
B level lightning protection, 10.1" touch screen, remote monitoring available |
|
Monitoring system |
|
|
Alarm mode |
Sound and lightning alarm, SMS alarm. E-mail alarm |
|
Access interface |
Remote web accessing, local 10.1" touch screen, APP on mobile phone |
|
Function module |
Centrally management(UPS/air conditioner/power distribution), alarm management. Environment management(temperature humidity, smoking, leaking |
