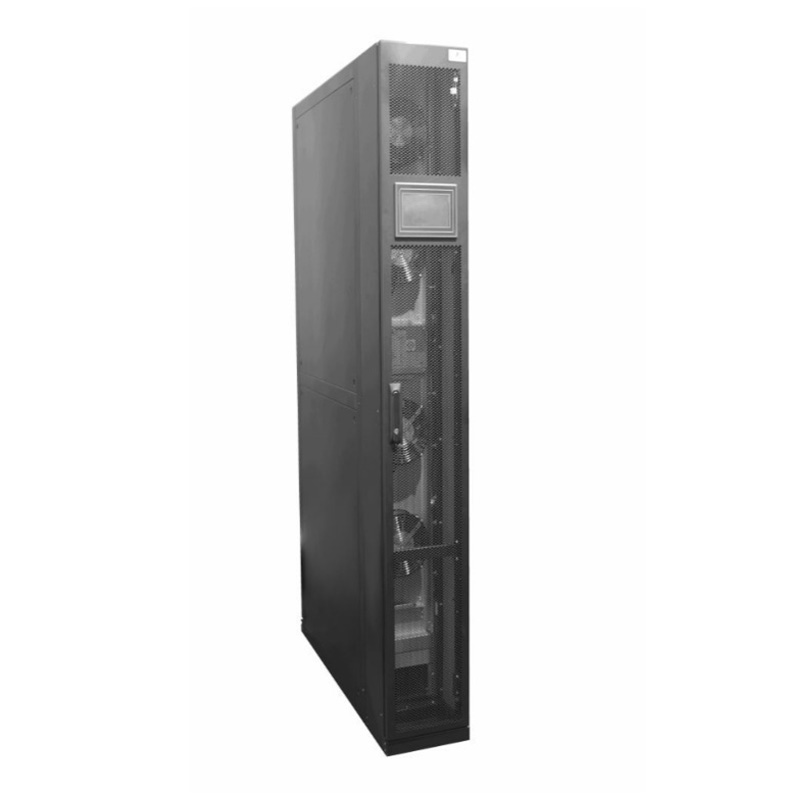

Raw-based air cooling precision air conditioner
Energy-efficient
Intellect management
1. 7 inch colorful touch screen
2. Humanized design, one-button operation
3. Quickly switch between Chinese and English
4. Unit working mode display function(refrigeration,heating, dehumidification, humidification
5. Dynamic display of color image of components
6. Temperature and humidity trend curve display
7. Perfect self protection and alarm function
8. Professional self-diagnostic
9. Conprehensive parameter test and adjusting function
10. Self starting after energizing function
11. Water leakage detection
12. Fire smoking alarm
13. Lightning protection
14 prevent condensation
15. Controlling and refrigerant leak alarm
Perfect workmanship
ISO quality management and TPS precision prodcution
IT level process manufacturing
Black color, perfect integration with data center equipments
Convenient maintenance
Draught fan and electric machine integrated design, no requirement for belt replacement Front and rear door on-site maintenance Hot swapping design for draught fan, online maintenance available
Abundant function
1、Three phase sequence faulty-tolerant
2、Voltage and frequency detection, under-voltage and over-voltage protection
3、CAN bus type topology, advanced energy and efficiency management, 32 sets of group controller, easy to networking
4、Rotational speed detection of draught fan, abnormal speed alarm, fault detection
5、Double power redundancy power distribution
6. Optional lightning protection
7、Optional lope leakage and point leakage sensor
8、Built-in PID professional parameter, energy-efficient, safe and stable operating
9、-1.5%-15% power grid adaptability
10、Optional fu pump and Ethylene glycol nature cooling
High reliable
1、365 days*24 hours interrupted operation design All the accessories are strictly tested and inspected Safe and reliable PTO electric heating
2、High and low water level controls condensate pump, double protection, reliable anti-liquid attacking and anti-oil leakage design
3、Perfect alarm protection and professional self-diagnostic functions
Satisfy safe requirements
4、High strength frame, satisfy sea, land and air transportation
High adaptable
-40-45℃ operating temperature
Long connecting pipe and big dropping design ROHS
space saving
Standard compact rack size design
Save unit area and maintenance space
|
Product Name |
Part No. |
Description |
|
Raw-based air cooling precision air conditioner indoor unit (12.5kW) |
DAL12-N2-10123 |
Refrigerating capacity: 12.6kW. Air returning working condition: Indoor dry bulb temperature 35℃, Outdoor dry bulb temperature 37.8℃, relative humidity 20%; Air blowing rate:3000m /h, Size: 300*D1000*H2000mm, RS485 communication interface, air blow in the front, air returning at the back, Full load current 18.5A, Electric heating capacity 3KW, humidification capacity 1.5KG/h |
|
Raw-based air cooling precision air conditioner indoor unit (12.5kW) |
DAL12-N2-11123 |
Refrigerating capacity: 12.6kW. Air returning working condition: Indoor dry bulb temperature 35℃, Outdoor dry bulb temperature 37.8℃, relative humidity 20%; Air blowing rate:3000m /h, Size: 300*D1100*H2000mm, RS485 communication interface, air blow in the front, air returning at the back, Full load current 18.5A, Electric heating capacity 3KW, humidification capacity 1.5KG/h |
|
Raw-based air cooling precision air conditioner indoor unit (12.5kW) |
DAL12-N2-12123 |
Refrigerating capacity: 12.6kW. Air returning working condition: Indoor dry bulb temperature 35℃, Outdoor dry bulb temperature 37.8℃, relative humidity 20%; Air blowing rate:3000m /h, Size: 300*D1200*H2000mm, RS485 communication interface, air blow in the front, air returning at the back, Full load current 18.5A, Electric heating capacity 3KW, humidification capacity 1.5KG/h |
|
Raw-based air cooling precision air conditioner indoor unit (12.5kW) |
DAL12-W-N |
Normal temperature type, Size: W1024*D396*H1002mm, Adopted outdoor temperature -20℃-+45℃, Weight 76KG, equipped with compressor |
|
Raw-based air cooling precision air conditioner indoor unit (25.8kW) |
DAL25-N2-12123 |
Refrigerating capacity: 25.8kW. Air returning working condition: dry bulb temperature 37.8℃, relative humidity 20%; Air blowing rate:5000m /h, stepless speed regulating draught fan Size: 300*D1200*H2000mm, RS485 communication interface, 7'' colorful touch screen, single system vortex compressor, R410A refrigerant(not filled), do not include tuyere, compatible up and low pipes, liquid pipeφ: 12.7, air pipe φ: 15.88, humidifier water supply pipe(19.05mm internal thread) BSPP3/4‘’, condensing drain pipe φ19, voltage 380V, maximum power of indoor unit 13.3KW, maximum power of outdoor unit 1.32KW |
|
Raw-based air cooling precision air conditioner indoor unit (25.8kW) |
DAL40-W-N |
Heat dissipating capacity 40KW, air blowing rate 12000m /h, size W1650*D1100*H1150mm(with stents), axial flow draught fan, power 1.32KW |
|
Raw-based air cooling precision air conditioner indoor unit (25.8kW) |
DAL40-W-L |
Heat dissipating capacity 40KW, air blowing rate 12000m /h, size W1650*D1100*H1150mm(with stents), axial flow draught fan, power 1.32KW, equipped with low temperature components |
|

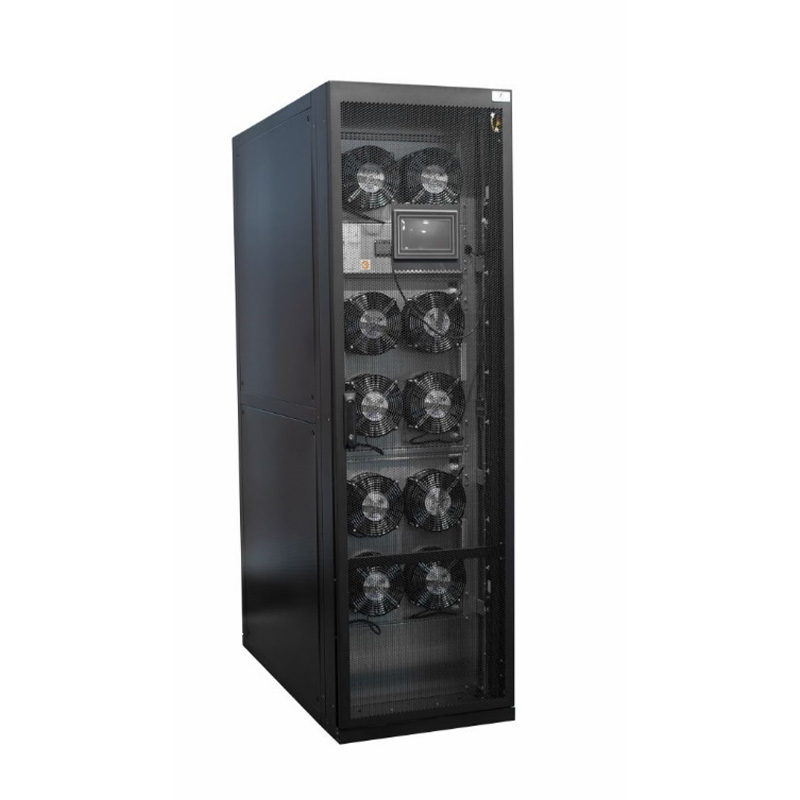

Raw-based air cooling precision air conditioner indoor unit (40kW) |
DAL40-N2-12123 |
Refrigerating capacity: 40KW. Air returning working condition: dry bulb temperature 37.8℃, relative humidity 20%; Air blowing rate:8500m /h, stepless speed regulating draught fan individual switch for each draught fan, supporting hot Swap, electronic expansion valve, high tension switch, electricity heating capacity 6KW, humidification capacity 3KG/h Size: 600*D1200*H2000mm, RS485 communication interface, 7'' colorful touch screen, single system vortex compressor, R410A refrigerant(not filled), do not include tuyere, compatible up and low pipes, liquid pipeφ: 15.88, air pipe φ: 22.23, humidifier water supply pipe(19.05mm internal thread) BSPP3/4‘’, condensing drain pipe φ19, voltage 380V, maximum power of indoor unit 19.4KW, maximum power of outdoor unit 2.64KW |
|
Raw-based air cooling precision air conditioner indoor unit (40kW) |
DAL60-W-N |
Heat dissipating capacity 60KW, air blowing rate 23000m /h, size W2010*D1100*H1150mm(with stents), axial flow draught fan, power 2.64KW |
|
Raw-based air cooling precision air conditioner indoor unit (40kW) |
DAL60-W-L |
Heat dissipating capacity 60KW, air blowing rate 23000m /h, size W2010*D1100*H1150mm(with stents), axial flow draught fan, power 2.64KW, equipped with low temperature components |
